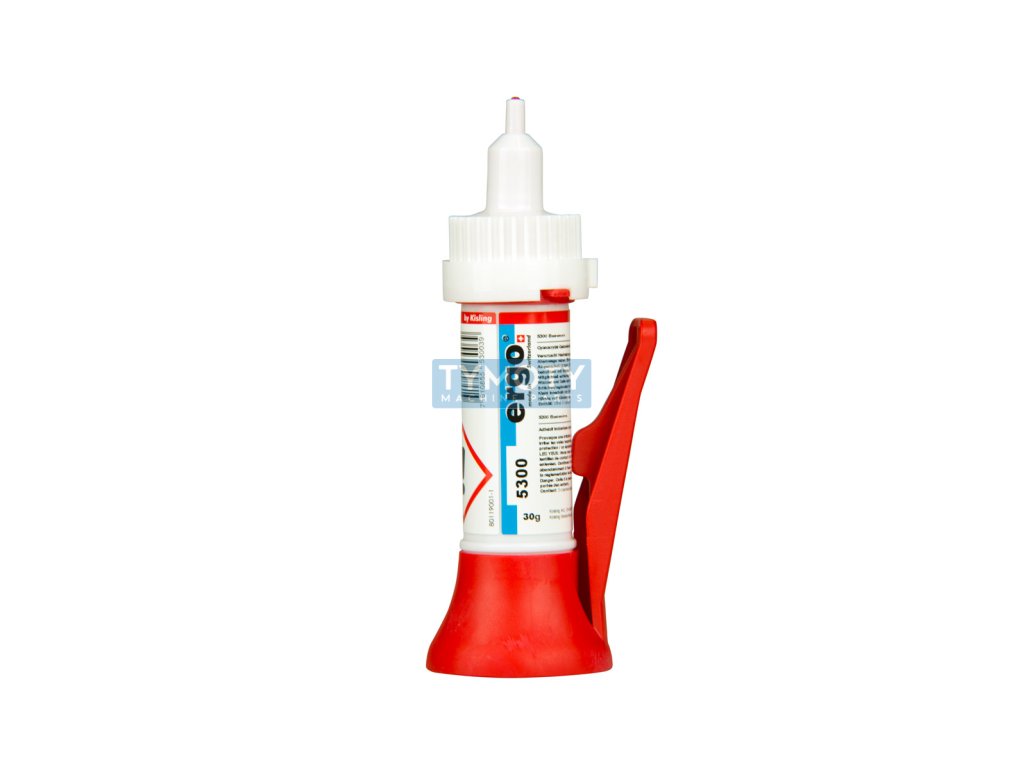

Ergo 5300 - 30 g instant adhesive for Smart pen elastomers

Product detailed description

Ergo 5300 Elastomer

Ergo 5300 is a high-quality elastomer designed for bonding common elastomers such as solid and foam rubbers, especially SBR, NBR and EPDM. This product offers excellent resistance to thermal and climatic aging and is certified to ANSI/NSF Standard 61 for use in commercial and residential drinking water systems. materials.

Technical parameters:

• Chemical type: Cyanoacrylic acid ethyl ester
• Appearance 1.05 g/cm? (DIN 51757)
• Viscosity: 20 40 mPas at 25°C
• Flash point: 87°C (DIN 55213)
• Temperature range: -30°C to +80°C
• Fixation time on various materials:

- Aluminum/Aluminum: 20 - 30 seconds

- SBR/SBR rubber: 2 - 4 seconds

- Polycarbonate/Polycarbonate: 3 - 6 seconds

< seconds
• Final strength: 24 hours

Application:

Ergo 5300 is ideal for use in the automotive industry, gasket manufacturing, and other applications where high aging resistance and fast curing are required. Examples include bonding seals in car doors or joining rubber components in industrial machinery. by material:

- SBR/SBR rubber ?18mm: > 2000 N

- EPDM/EPDM rubber ?16mm: > 250 N

Use in application:

It is recommended to use standard dispensing equipment for waste dispensing equipment.

Instructions for use:

1. Ensure that the surfaces are clean, dry and free of grease.

   2. Apply a thin layer of Ergo 5300 to one of the surfaces.

   3. Join the parts and press firmly during the recommended fixation.

   4. Allow to cure for 24 hours for maximum strength.

   Standards and Certifications:

2. Certified to ANSI/NSF Standard 61 for use in potable water systems.

Packaging:

Available in various customer sizes.

Storage:

Store in a cool, dry place at room temperature. Shelf life is 12 months.

Technical Data Sheet or Material Safety Data Sheet for Ergo 5300 on request.
