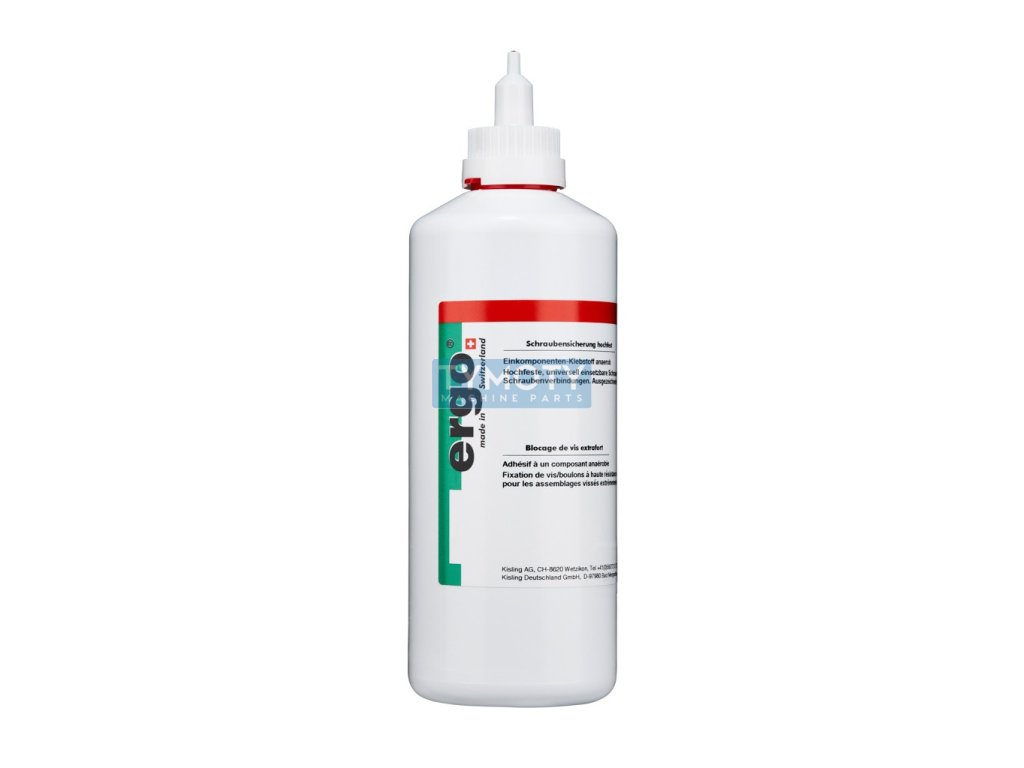

Ergo 4430 - 250 g VP joint fastener

Product detailed description

Ergo 4430

Ergo 4430 is a high strength adhesive designed to secure bearings in housings and wheels on axles without the need for prior cleaning. It offers excellent curing properties even at low temperatures (above +5°C) and on inactive metal surfaces. The product is certified to NSF ANSI 61 for use in commercial and residential potable water systems not exceeding 82°C and is listed NSF P1 for use in food processing facilities. low temperatures.

Technical parameters:

• Chemical base: Green acid ester
• Viscosity at 25°C: 100 – 200 mPas (Brookfield RVT, spindle 2, 20 rpm)
• Density at 25°C: 1.07 g/cm?
• Maximum thread diameter: M12
mm
• Flash point: > 90°C
• Lifespan: 1 year at room temperature

Application:

Ergo 4430 is ideal for use in industrial applications where high bond strength is required, such as securing bearings, such as bearing locking mechanical joints. It is suitable for applications in the automotive industry, machine building and other industries requiring reliable component locking. > 25 Nm (DIN 54454)

The use of standard adhesive dispensing equipment such as dispensing guns or automatic dispensing systems is recommended for the product.

Instructions for use:

1. Make sure that the surfaces are dry and free of oil or grease.

   2. Apply Ergo 4430 evenly to one of the surfaces.

   3. Join the parts and secure them in place until they reach functional strength (30 - 40 minutes).

   4. Allow to cure for 3 - 6 hours to reach final strength.

   Standards and certifications:

2. NSF ANSI 61 certified for use in potable water systems.
3. NSF P1 listed for use in food processing facilities.

Packaging:

Ergo 4430 is available in a variety of package sizes, including small tubes for manual application and larger containers for industrial use.

Storage:

The product should be stored in its original closed cool and between +5 +25°C to maintain its properties.

Technical data sheet or safety data sheet for Ergo 4430 on request.
