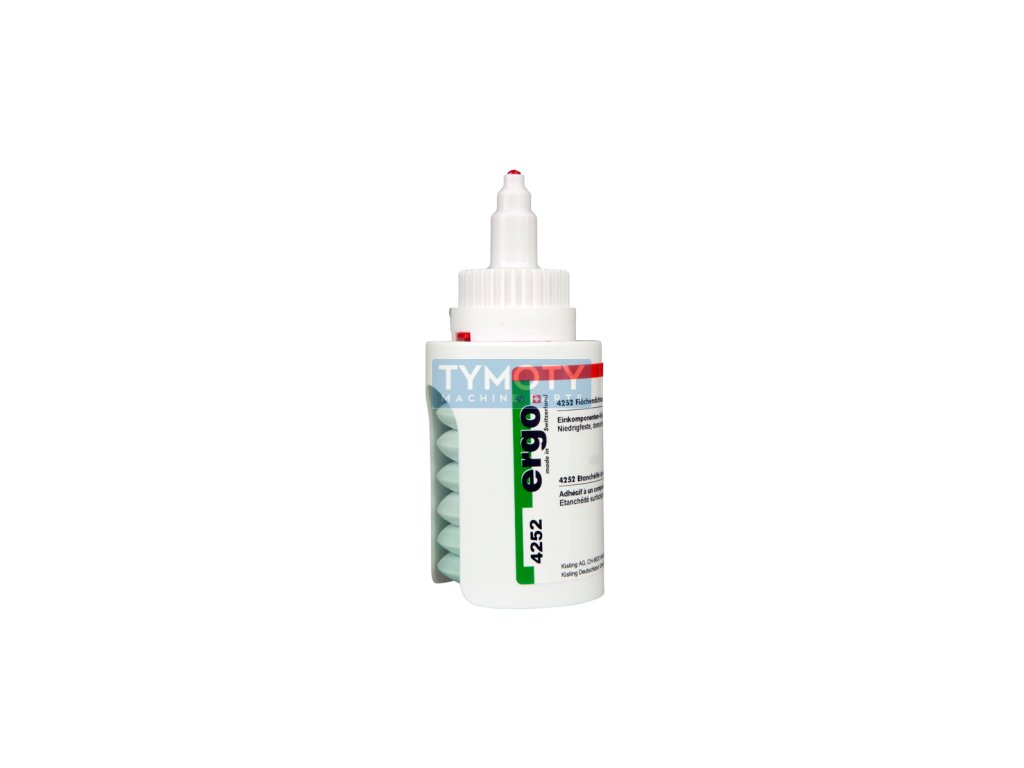

Ergo 4252 - 50 g surface seal NP

Product detailed description

Ergo 4252 Instant Gasket

Ergo 4252 Instant Gasket is a low-force gasketing product designed to seal flanges and other flat surfaces against a wide range of gases and chemicals. This product replaces conventional solid gasketing materials such as cork, paper, rubber or metal. It is easily applied using foam rollers or screen printing systems, ensuring efficient and fast application. materials such as cork, paper, rubber or metal.

Technical parameters:

• Chemical base: Methacrylic acid diester
• Color: 25°C: 55,000 – 80,000 mPas (spindle 6, 2.5 rpm), 15,000 – 25,000 mPas (spindle 6, 20 rpm)
• Density at 25°C:>1.05 g. gap filling: 0.30 mm Flash point: > 100 ° C Shelf life: 1 year at room temperature Application: The product is ideal for use in the automotive industry, mechanical engineering and other industries. Examples include sealing engine blocks, gearboxes and other mechanical assemblies.

  Typical properties:

• Initial strength: 15-30 minutes
• Functional strength: 3-6 hours
• Final strength: 6-24 Nm (DIN 54454)
• Prevailing torque: 3-5 Nm
• Shear strength: 4-11 N/mm² (DIN 54452)
• Tensile strength: 2-8 N/mm² (ASTM D2095)
• Temperature range: 55°C to +150°C

Use for application:

The use of foam rollers or screen printing systems is recommended for optimal product application.

Instructions for use: Ensure surfaces are clean, dry and free of grease.

2. Apply Ergo 4252 Instant Gasket evenly to one of the surfaces to be joined.

3. Join surfaces and allow to cure for the time specified in the technical specifications.

4. Once functional strength has been achieved, the assembly can be put into service.

Standards and certifications:

• Certified to NSF ANSI 61 for use in commercial and residential potable water systems up to 82°C.
• NSF P1 listed for use in food areas.

Packaging:

The product is available in various package sizes to suit different applications and user needs.

Storage:

Store in a dry and cool place at room temperature. Keep away from direct sunlight and heat sources to maintain optimal product properties.

Technical data sheet or safety data sheet for Ergo 4252 Instant Gasket on request.
