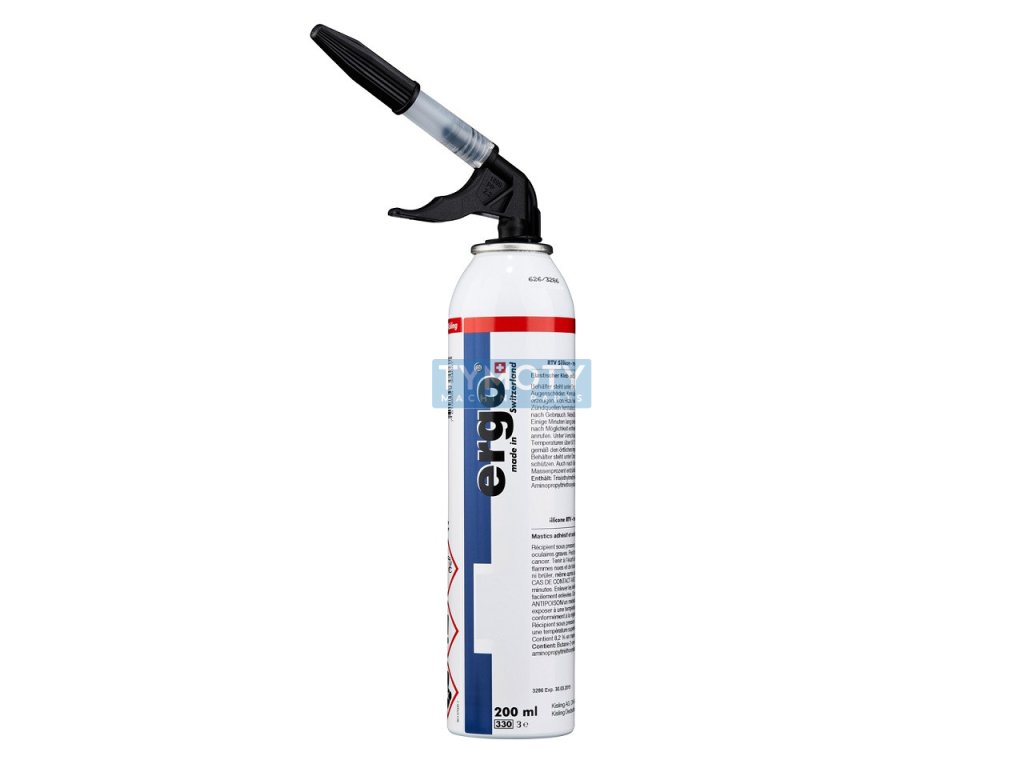

Ergo 3140 - 200 ml RTV silicone transparent (MEKO-free)

Product detailed description

Ergo 3140 Super RTV Silicone Transparent

Ergo 3140 Super RTV Silicone Transparent is a neutral curing, one-component silicone sealant designed for a wide range of industrial applications. This product is characterized by its high temperature resistance, mechanical strength and vibration resistance, as well as excellent resistance to weathering and chemicals. Ergo 3140 Super RTV Silicone Transparent serves as an adhesive and sealant that provides optimal sealing, protection and adhesion to a wide range of materials. It is typically used in situations where it is necessary to join or seal surfaces in heating or cooling equipment, or in applications where electronic components require protection from external influences such as vibration, shock, moisture and chemicals. Examples of applications include bonding and sealing parts in household appliances (e.g. ovens and ceramic hobs), seals in electronic components (e.g. batteries), seals in automotive applications (e.g. intake manifolds, oil pumps, oil pans, camshaft bearing caps, gearbox covers and front covers) sealing.

Advantages:

• Paste, does not run during assembly
• Very low odor
• Transparent
• Neutral and acid-free curing (non-corrosive)
• Resistant to weathering and chemicals

Technical parameters:

• Chemical type: Modified oxime silicone
• Curing system: Moisture curing
• Appearance: Transparent, thixotropic paste
g/ml
• Viscosity at 25 °C (EN 12092, Coneplatesystem):

- Shear rate 10 s-1: 18'000 – 23'000 mPa•s

- Shear rate 100 s-1: 7

• Extrusion rate at 25 °C with 5.5 bar and 3 mm orifice: 250 – 350 g / 15 seconds
• Skin formation time at 23 °C and 50% RH: 5 – 10 minutes
• Curing process at 2 3 mm
• Volume shrinkage: 5 – 7 %
• Weight loss: 1 – 3 %

Application:

The product is ideal for use in domestic appliances, electronic components and automotive applications. For example for sealing and bonding parts in ovens, ceramic hobs, accumulators, suction pipes and door seals. 1.0 N/mm?

Use for application:

The use of standard application tools for silicone sealants, such as application guns, is recommended. application:

1. Ensure that surfaces are clean, dry and free of grease.

   2. Cut the tip of the cartridge to the desired size and attach the nozzle.

   3. Apply the product evenly to the surface.

   4. Join the parts together and allow to cure.

   5. Clean tools and excess material after use.

   Packaging:

   Available in 200 ml metal tubes or cans.

   Storage:

   Store at room temperature in a dry place. Keep in the original packaging to maintain the product's properties for 24 months.

   Technical data sheet or safety data sheet for Ergo 3140 Super RTV Silicone Transparent on request.
