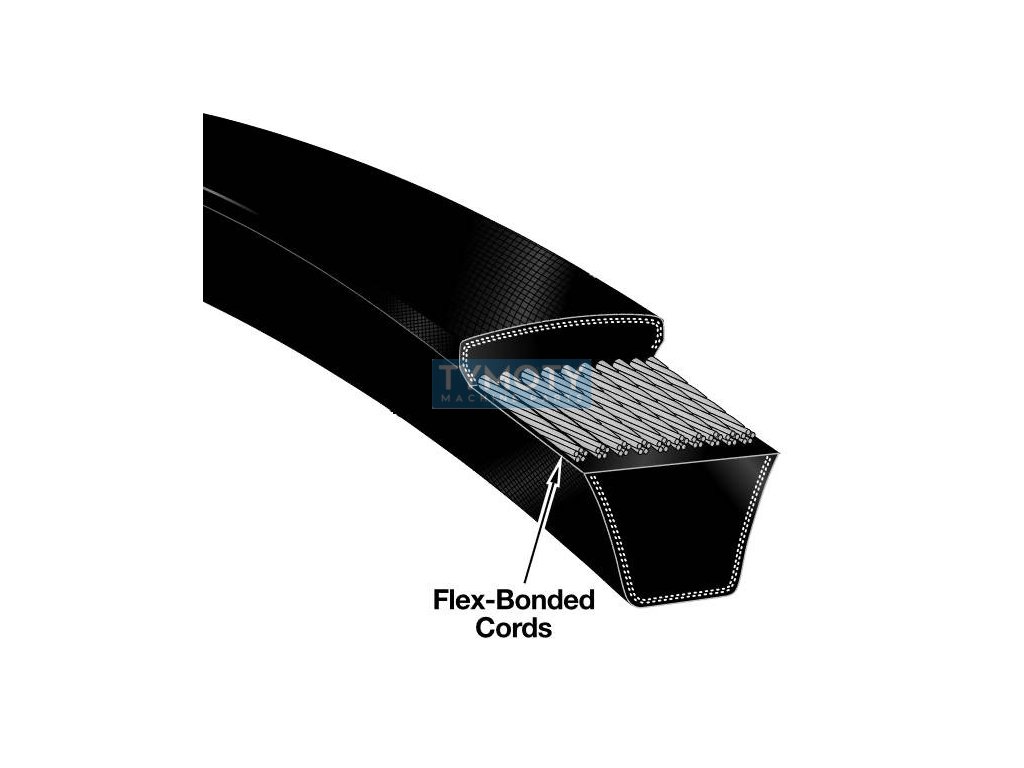

V-belt SPZ 1060 Lw (3V 420) Gates Super-HC
Code: 542675
Product detailed description
No product's description available
Additional parameters
| Category: | Belts > wedge simple > narrow wrapped > license plate (9.7x8) |
|---|---|
| Weight: | 0.084 kg |
| EAN: | 5412571075939 |
| Angle ( ° ): | 40 |
| Calculation length Lw, Lp, mm: | 1060 |
| Cord type: | PES |
| Country of origin: | PL |
| DIN standard: | 7753/1 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 1022 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Gates |
| Material: | CR |
| Maximum temperature °C: | 60 °C |
| Minimum diameter: | 63 |
| Minimum temperature °C: | -30 °C |
| Outer length La (mm): | 1073 |
| Product: | V-belt narrow |
| Profile: | SPZ |
| Width B (mm): | 10 |
| Číslo výrobce: | 9331-01060 |
| Značení: | SPZ1060/3V420 SUPERHC |
| Řada: | SUPER HC |
| Typ: | obalovaný |
