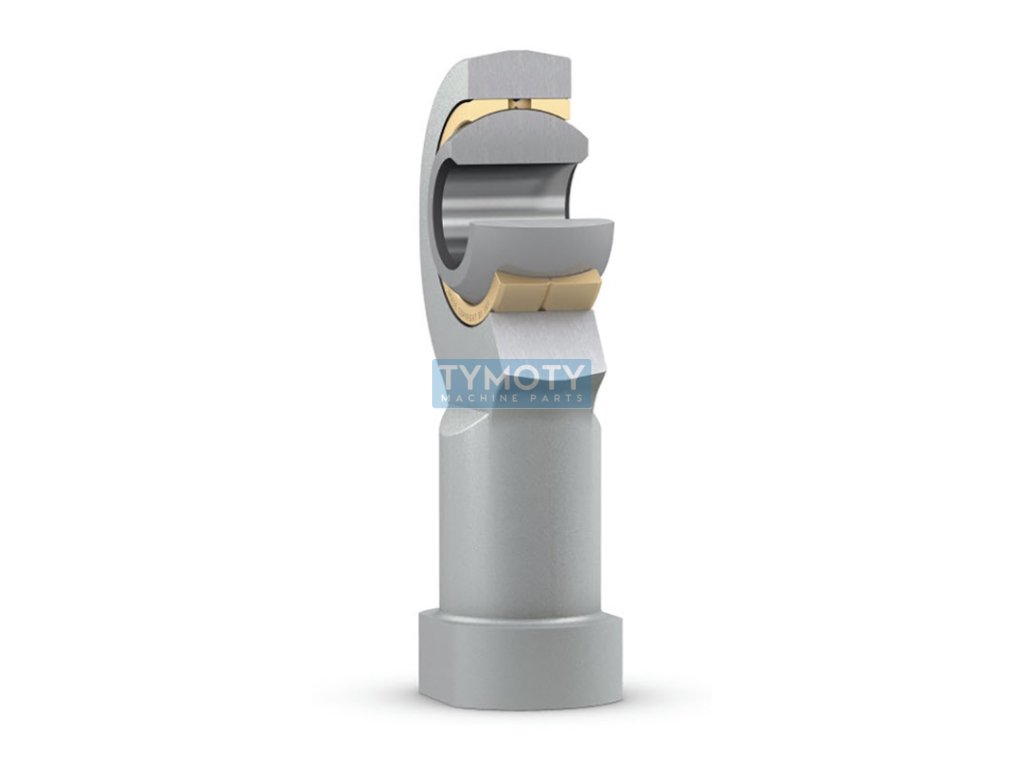

SKF SILKAC 12 M articulated head
Code: 399048
Product detailed description

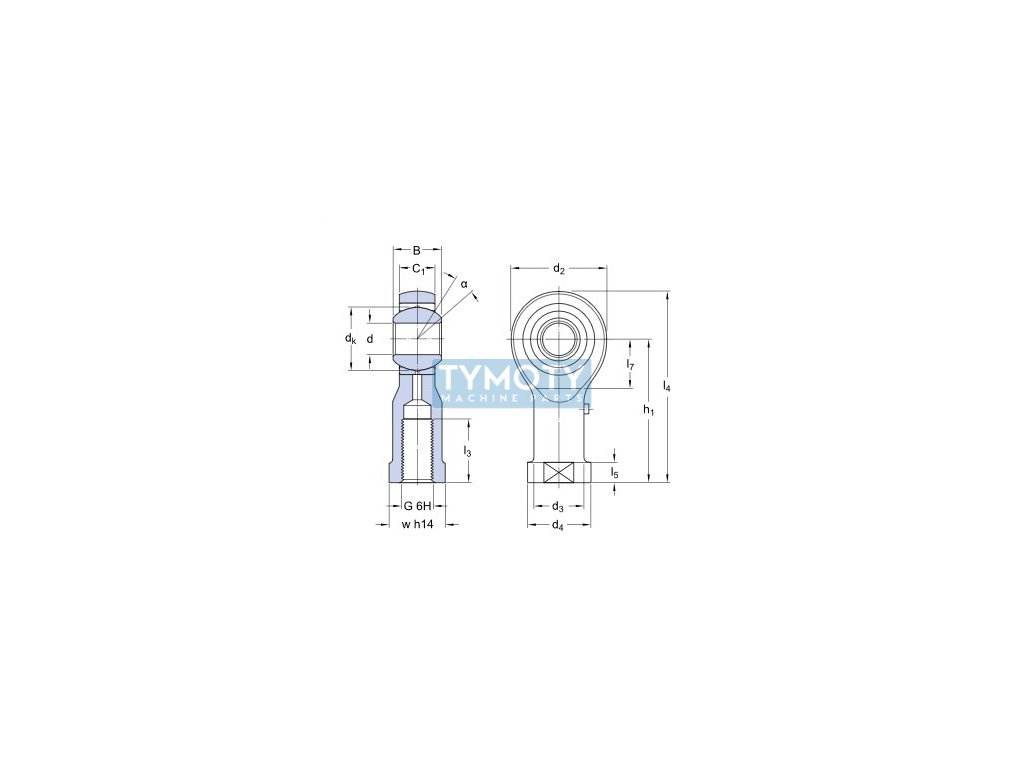

Rod end, internal left-hand metric thread, bearing-steel/bronzeAdditional parameters
| Category: | Bearings > slippery > articulated heads > internal left-hand thread > steel-bronze (SILKAC..M, GIKL..PB) > d=12 mm thread M12 left |
|---|---|
| Weight: | 0.113 kg |
| EAN: | 7316577025678 |
| Angle ( ° ): | 13 |
| Diameter D (mm): | 12, 33 |
| Diameter D2 (mm): | 33 |
| Diameter d3 (mm): | 17,5 |
| Diameter d4 (mm): | 23 |
| Diameter dk (mm): | 22,2 |
| Height H1 (mm): | 50 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 18 |
| Length l4 (mm): | 67 |
| Length l5 (mm): | 6,5 |
| Length l7 (mm): | 16 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M 12 left |
| Width B (mm): | 16 |
| Width C1 (mm): | 12,5 |
| Značení: | SILKAC 12 M |
| Typ: | kloubová hlavice |
