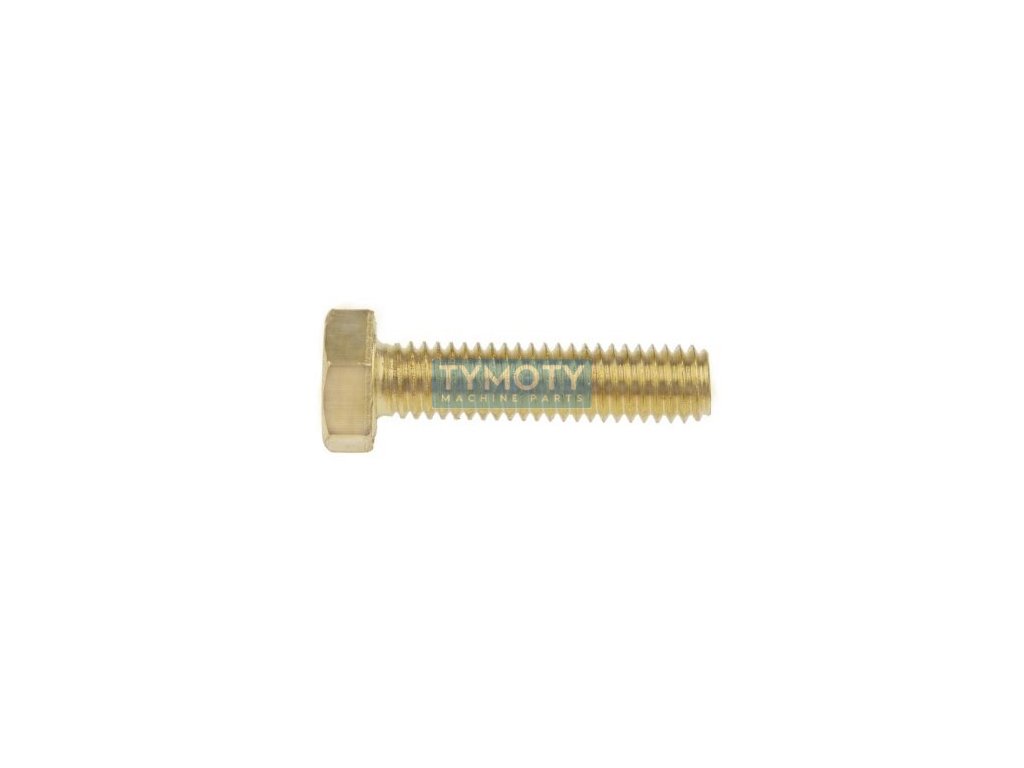

Hexagon screw full thread DIN 933 M5x40 brass
Code: 817927
Product detailed description
ČSN 021103 - DIN 933 MS M5x40 - brass fastener - screw with hexagonal head and thread to the head, made of brass Cu2/Cu3, with metric thread M5 with standard pitch 0.80 mm with length L = 4.Additional parameters
| Category: | Fasteners > hexagon head screws > full thread DIN 933 > brass |
|---|---|
| Weight: | 0.007 kg |
| EAN: | 4043952256947 |
| CSN standard: | 021103,8 |
| Diameter D (mm): | M5 |
| DIN standard: | 933 |
| EN standard: | 24017 |
| Head shape: | hexagonal |
| Height k (mm): | 3,5 |
| ISO standard: | 4017 |
| Length L (mm): | 40 |
| Material: | brass |
| Pitch: | 0,80 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width e (mm): | 8,79 |
| Width s (mm): | 8 |
