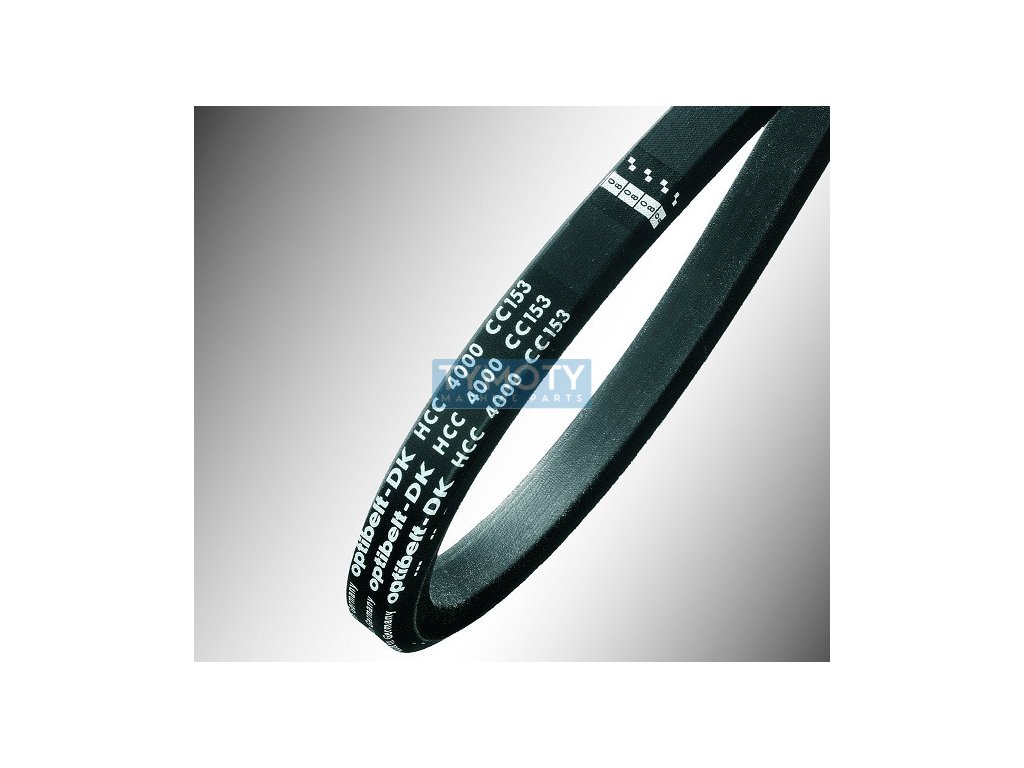

Double-sided V-belt HCC 5750 Lw CC 224" optibelt DK

Product detailed description

The HCC 5750 Lw CC 224" double-sided V-belt from the manufacturer Optibelt, also known as a hexagonal belt, is specially designed for power transmission in drives with reverse operation or with external tensioning, where the belt contacts both sides. The HCC profile, sometimes also known as CC, indicates a belt width of 22 mm, while its height is 17 mm. The calculated (central) length of the belt is 5750 mm, the inner length is 5730 mm and the outer length reaches 5795 mm. The belt is marked with the manufacturer's number 1621679.

This belt is made of a durable rubber compound and is equipped with a fabric covering that provides protection against abrasion, dust, oils and temperature fluctuations. The symmetrical design with a central tension member ensures even force distribution and high strength under bidirectional loads. Thanks to this The belt design allows for smooth and quiet operation even under high loads and dynamic operating conditions.

Optibelt DK is suitable for technically demanding applications such as conveyors, return rollers, agricultural and forestry machinery, or industrial drives with reverse operation. Thanks to its robustness, reliability and antistatic properties according to ISO 1813, it is also ideal for demanding operating environments with limited space and requirements for a long service life. The minimum diameter on which the belt can be used is 224 mm.
