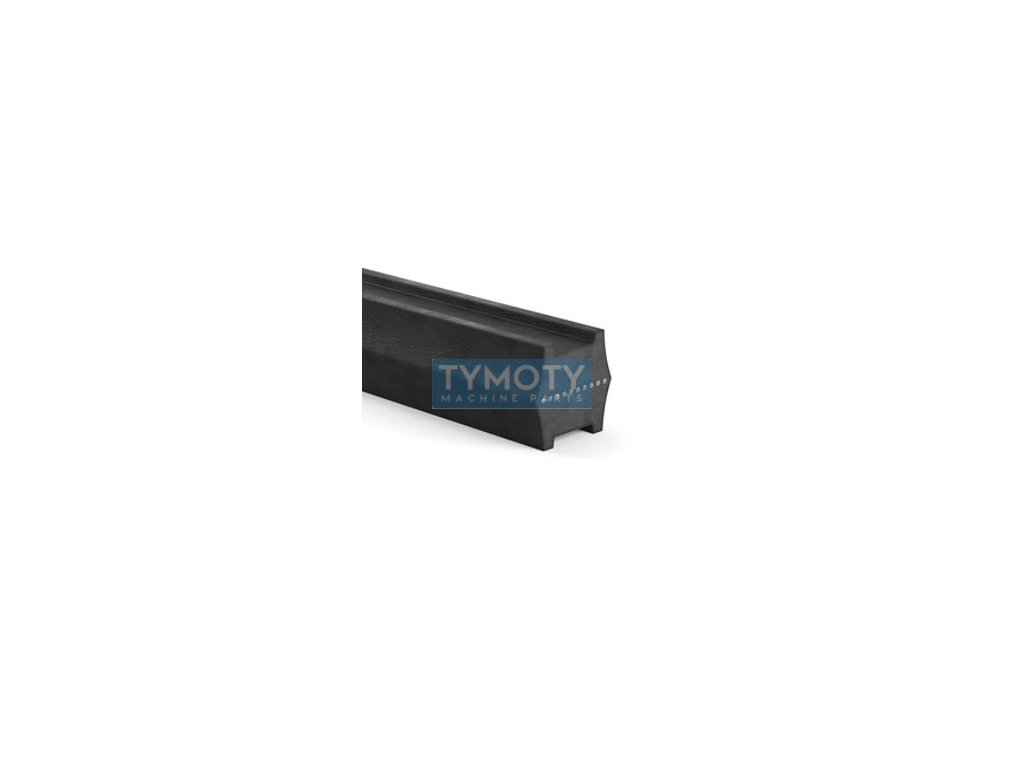

Double-sided V-belt HBB 6553 Lw BB 255" Gates HI-Power Dubl-V
Code: 542291
Product detailed description

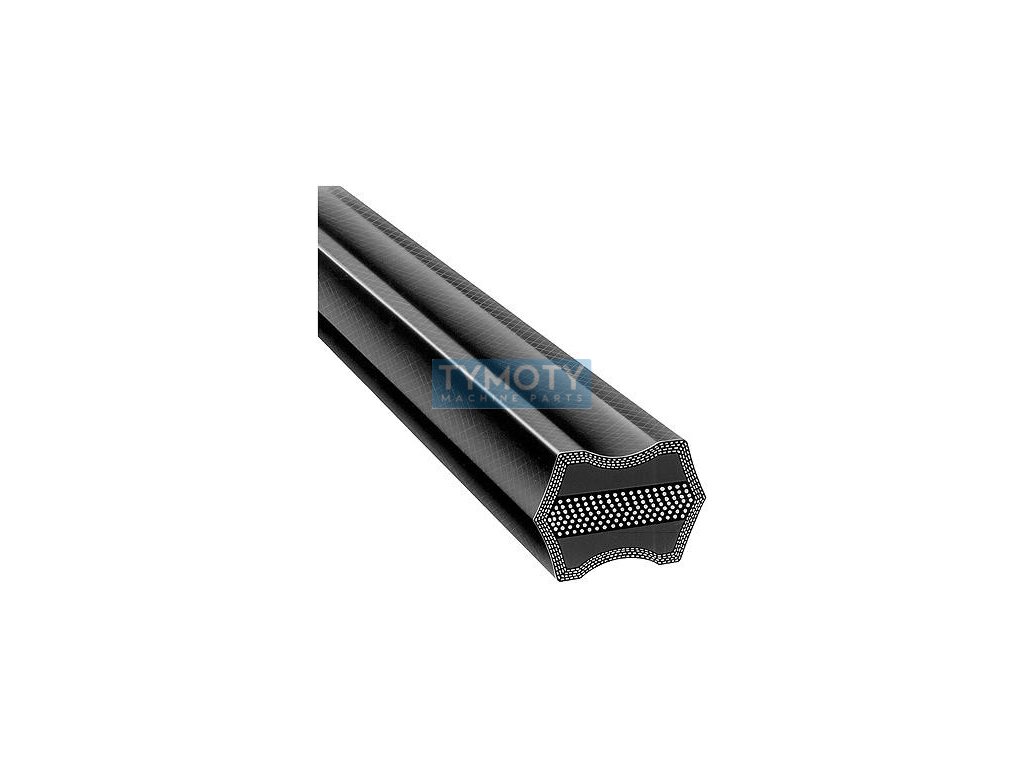

The Gates HI-Power Dubl-V double-sided V-belt HBB 6553 Lw BB 255" is specially designed for applications with opposite directions of rotation, known as "serpentine" drives. This belt is characterized by its hexagonal BB profile, which has a width of 17 mm and a height of 13 mm, which allows for efficient power transmission to both sides. The total length of the belt is 6530 mm, which corresponds to its internal length Li and the calculated length Lw, Lp.The manufacturer Gates ensures high quality and durability of this belt, while the materials used, such as chloroprene rubber (CR), increase its resistance to dust, moisture and mechanical damage. The belt is equipped with strong polyester (PES) tension cords, which guarantee high strength and long service life. The Flex-Weave™ sheath provides additional protection against heat and oil, thus extending the service life belt.
This belt meets the strict RMA/ARPM standards, which include temperature resistance and static conductivity, making it suitable for harsh industrial conditions. The minimum pulley diameter on which the belt can be fitted is 125 mm. Thanks to its properties, it is an ideal choice for applications where synchronization and reliable two-way power transmission are required. The serial number of this belt is 9053-00255.
Additional parameters
| Category: | Belts > wedge hexagonal > BB 17x13 |
|---|---|
| Weight: | 1.55 kg |
| EAN: | 5400608060508 |
| Calculation length Lw, Lp, mm: | 6530 |
| Cord type: | PES |
| Country of origin: | US |
| Height H (mm): | 13 |
| Inner length Li (mm): | 6530 |
| Manufacturer's brand: | Gates |
| Material: | CR |
| Minimum diameter: | 125 |
| Product: | V-belt |
| Profile: | HBB |
| Width B (mm): | 17 |
| Číslo výrobce: | 9053-00255 |
| Značení: | BB255 DUBLV |
| Řada: | HI POWER DUBL V |
| Typ: | šestihranný |
