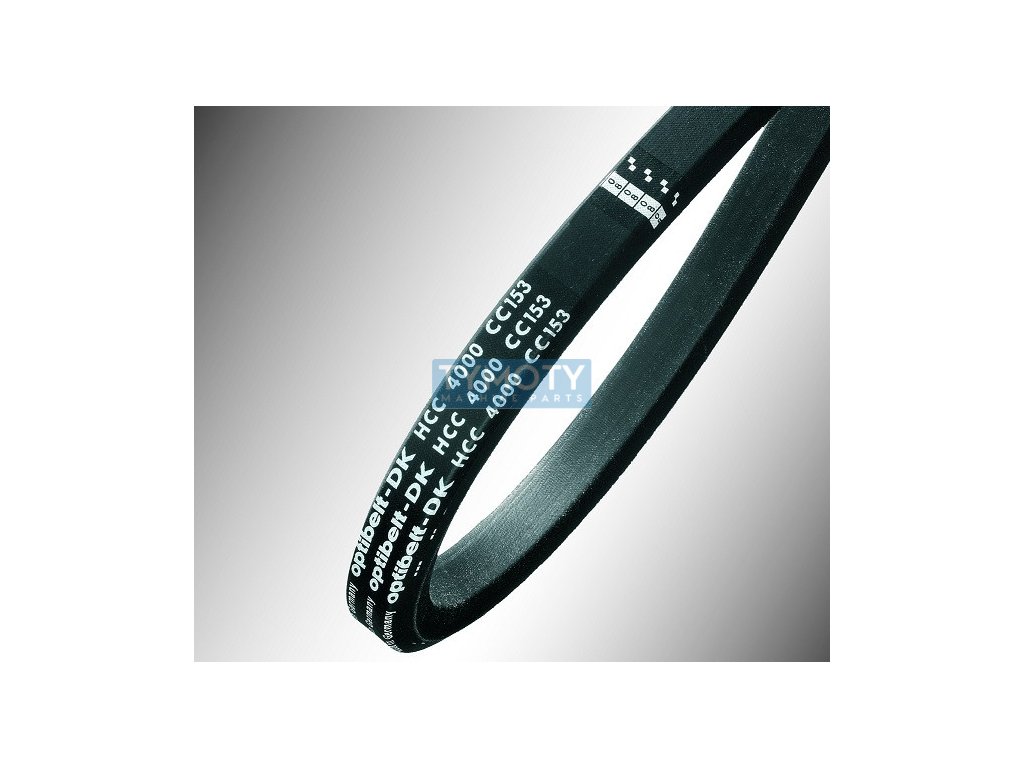

Double-sided V-belt HBB 3000 Lw BB 115" optibelt DK

Product detailed description

Optibelt DK is a special double-sided V-belt designed for power transmission in drives with reverse operation or external tensioning, where the belt contacts both sides. Thanks to its symmetrical design with a centrally located tension member, it ensures even force distribution and high strength under bidirectional loads. The belt is made of a durable rubber compound and equipped with a textile covering that protects against abrasion, dust, oils and temperature fluctuations. The belt design allows for smooth and quiet operation even under high loads and dynamic operating conditions.

The HBB 3000 - BB 115 belt is a double-sided hexagonal (hexa) belt. The HBB profile, sometimes also referred to as BB, determines the belt width, which is 17 mm. The belt height is 13 mm. The number 3000 represents the calculated (center) length in millimeters. The second number in the sequence, 115, is the length in inches and indicates the inner length, which is 2975 mm. The outer length of the belt is 3025 mm. The belt is manufactured by Optibelt under the trade name DK.

Optibelt DK is used in technically demanding applications such as conveyors, return rollers, agricultural and forestry machinery, or industrial drives with reverse. Thanks to its robustness, reliability and antistatic properties according to ISO 1813, it is also suitable for demanding operating environments with limited space and requirements for a long service life. The minimum pulley diameter for this belt is 125 mm.
