Double-sided V-belt HBB 2650 Lw BB 101" optibelt DK

Product detailed description

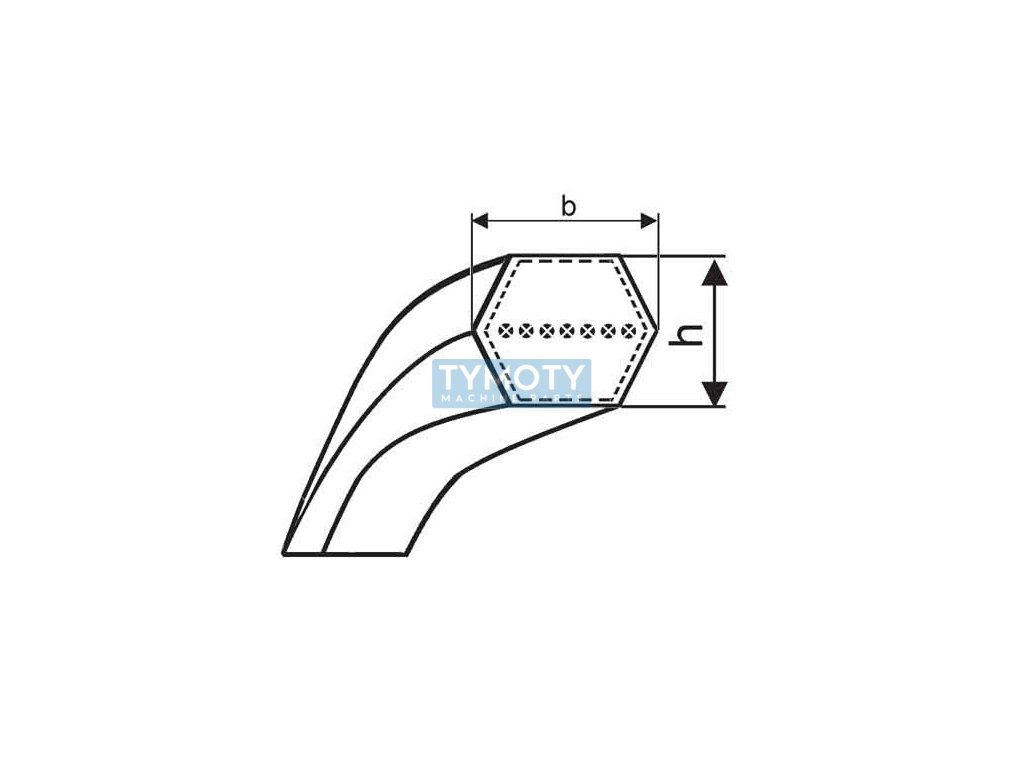

The double-sided V-belt HBB 2650 Lw BB 101" from the manufacturer Optibelt, known under the DK series, is specially designed for applications where power transmission is required in reverse operation or in situations with external tension, where the belt contacts both sides. This hexagonal (hexa) belt has an HBB profile, sometimes also referred to as BB, with a precise width of 17 mm and a height of 13 mm. The calculated length of the belt is 2650 mm, with an internal length of 2625 mm and an external length of 2675 mm.

The belt is made of a durable rubber compound and is equipped with a fabric covering that provides protection against abrasion, dust, oils and temperature fluctuations. Thanks to the symmetrical design with a central tension member, it ensures even force distribution and high strength under bidirectional loads. This design allows the belt to be quiet and smooth running even under high loads and dynamic operating conditions.

Optibelt DK is ideal for technically demanding applications such as conveyors, return rollers, agricultural and forestry machinery or industrial drives with reverse operation. Thanks to its robustness, reliability and antistatic properties according to ISO 1813, it is also suitable for demanding operating environments with limited space and requirements for a long service life. The minimum pulley diameter for this belt is 125 mm, which allows it to be used in various design solutions.
