Double-sided V-belt HAA 2800 Lw AA 108" optibelt DK

Product detailed description

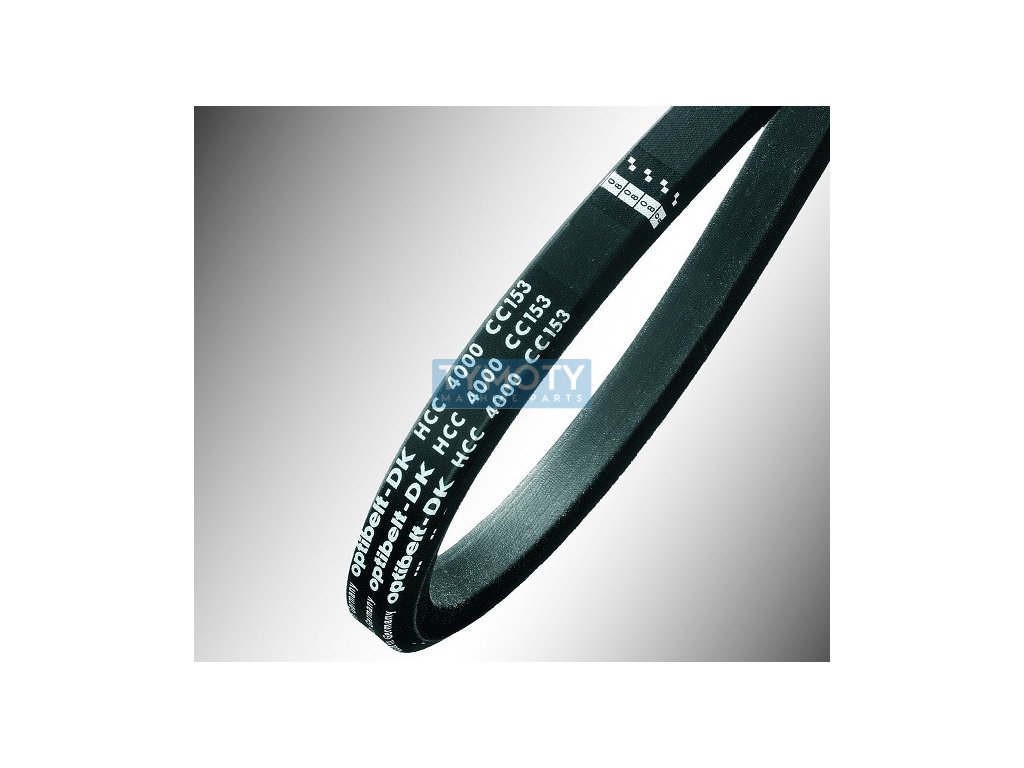

The HAA 2800 Lw AA 108" double-sided V-belt from the manufacturer Optibelt, known under the trade name DK, is specially designed for drives with reverse operation or with external tensioning, where the belt contacts both sides. The HAA profile, sometimes also referred to as AA, has a width of 13 mm and a height of 10 mm. The calculated (central) length of the belt is 2800 mm, while the internal length is 2751 mm. The second number in the sequence, 108, is the length in inches and may be partially distorted or rounded.

The belt is made of a durable rubber compound and is equipped with a fabric covering that provides protection against abrasion, dust, oil and temperature fluctuations. The symmetrical design with a central bearing of the tension member ensures even force distribution and high strength under bidirectional loads. This design allows for quiet and smooth operation even under high loads and dynamic operating conditions.

Optibelt DK is used in technically demanding applications such as conveyors, return rollers, agricultural and forestry machinery or industrial reversing drives. Thanks to its robustness, reliability and antistatic properties according to ISO 1813, it is also suitable for demanding operating environments with limited space and requirements for a long service life. The minimum pulley diameter for this belt is 80 mm. The product is marked with the manufacturer's number 1693642.
