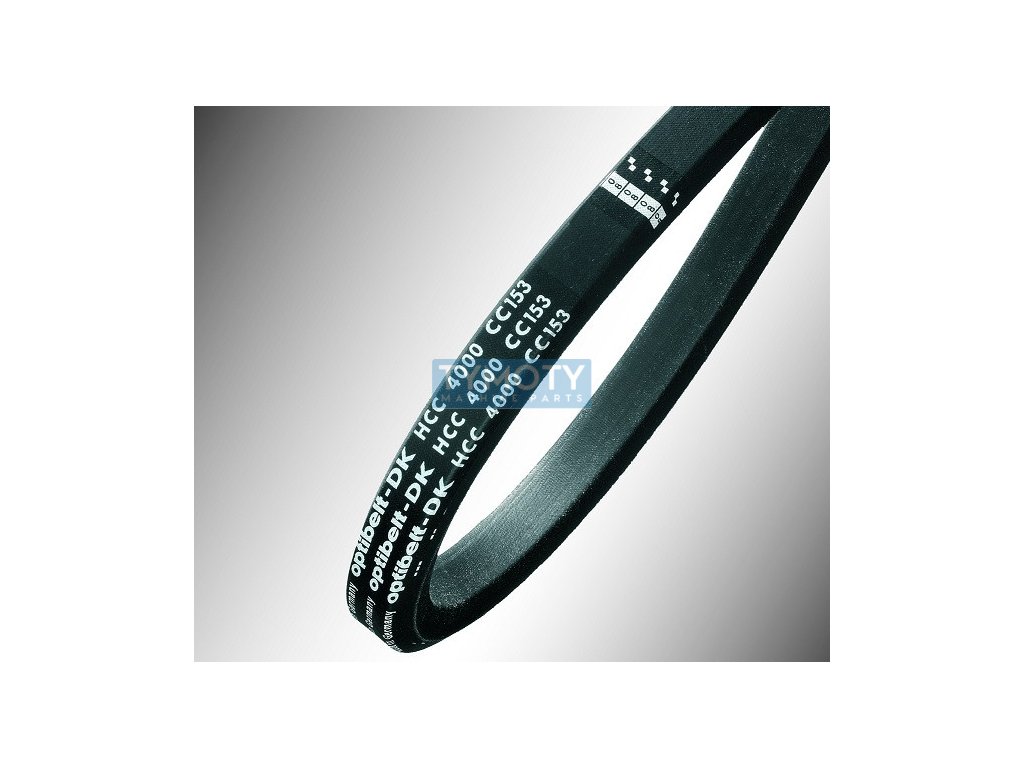

Double-sided V-belt HAA 2667 Lw AA 103" optibelt DK

Product detailed description

The HAA 2667 Lw AA 103" double-sided V-belt from Optibelt, known under the trade name DK, is specially designed for applications requiring power transmission in drives with reverse operation or external tensioning, where the belt contacts both sides. The HAA profile, sometimes also referred to as AA, determines a belt width of 13 mm, while the height is 10 mm. The calculated belt length is 2667 mm, while the internal length Li is 2618 mm.

This hexagonal belt is designed with a central bearing of the tension member, which ensures uniform force distribution and high strength under bidirectional loads. It is made of a durable rubber compound and equipped with a fabric covering that provides protection against abrasion, dust, oils and temperature fluctuations. This design allows the belt to run quietly and smoothly even under high loads and dynamic operating conditions. mode.

Optibelt DK is ideal for technically demanding applications such as conveyors, return rollers, agricultural and forestry machinery or industrial drives with reverse. Thanks to its robustness, reliability and antistatic properties according to ISO 1813, it is also suitable for demanding operating environments with limited space and requirements for a long service life. The minimum pulley diameter for this belt type is 80 mm, which allows it to be used in a wide range of applications.
