Door screw DIN 603 M6x60 8.8 galvanized

Product detailed description

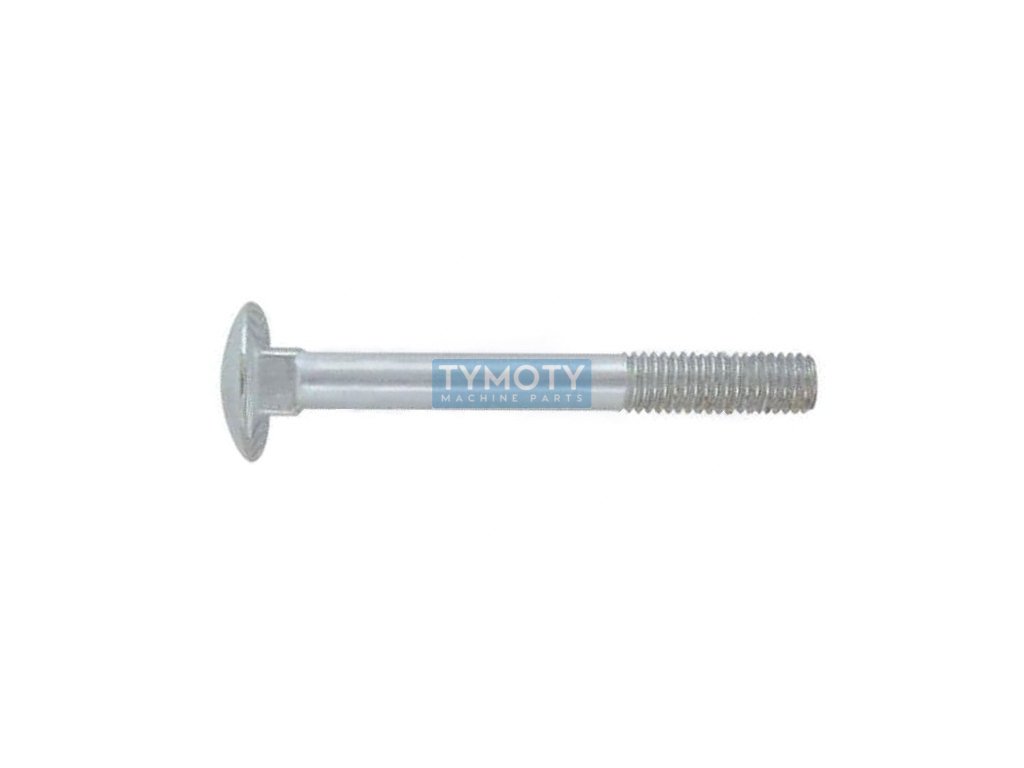

The DIN 603 gate screw with dimensions M6x60 is made of galvanized steel grade 8.8, which guarantees high strength and resistance to corrosion. This type of screw is characterized by a flat hemispherical head and a square neck, which ensures a firm hold in the material and prevents rotation during assembly. The DIN 603 standard, which is equivalent to ISO 8677 and ČSN 021319, defines the design features and dimensional tolerances of this screw.

The screw has a metric thread with a diameter of M6 and a pitch of 1.00 mm, which is standard for this diameter. The total length of the screw is 60 mm. The surface treatment is white zinc plating, which provides additional protection against corrosion and improves the aesthetic appearance of the component.

Gate screws are often used in the woodworking and construction industries, where it is necessary to ensure a firm connection without the possibility of rotating the screw head. Their design allows for easy assembly and disassembly, while ensuring high connection reliability. The bolt is supplied without a nut, which allows flexibility in selecting the appropriate fastener according to specific application requirements.
