Door screw DIN 603 M5x30 4.6 without PU
Code: 827004
Product detailed description

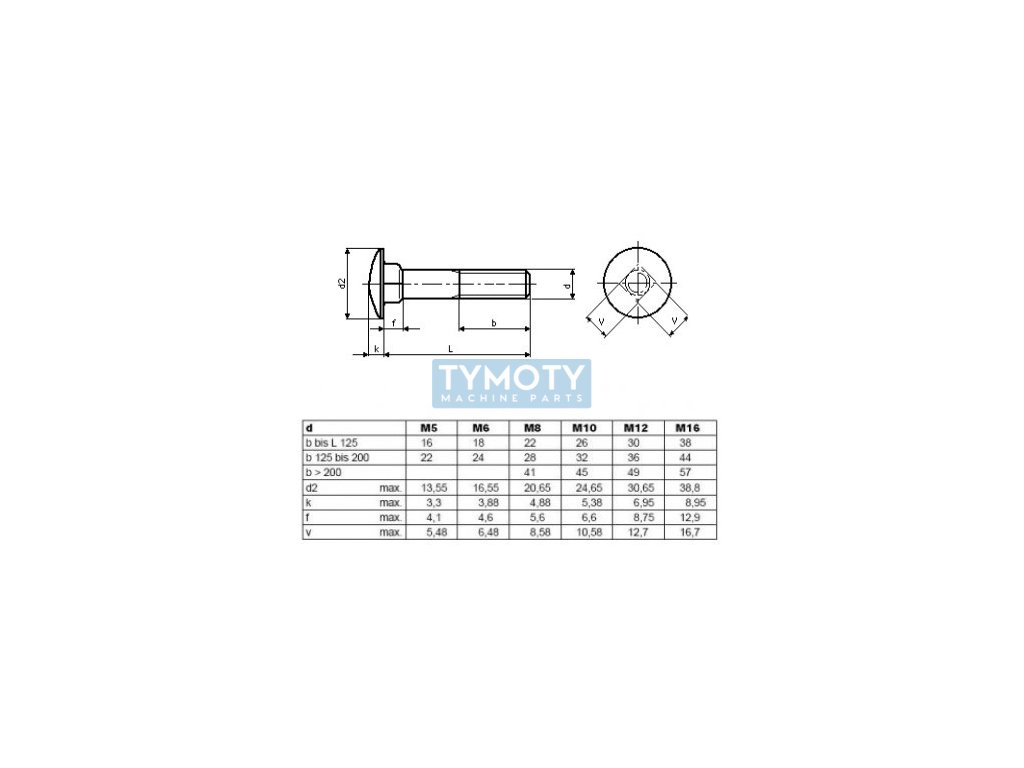

Screw with flat hemispherical head and square neck DIN 603, ČSN 021319, steel grade 4.6 without surface treatment.Additional parameters
| Category: | Fasteners > screws with rounded head > neck DIN 603 > steel 4.6 without treatment |
|---|---|
| Weight: | 0.007 kg |
| CSN standard: | 021319 |
| Diameter D (mm): | M5 |
| DIN standard: | 603 |
| Fortress class: | 4,6 |
| Head shape: | rounded with square |
| ISO standard: | 8677 |
| Length L (mm): | 30 |
| Material: | steel |
| Pitch: | 0,80 |
| Surface finish: | without modification |
| Thread type: | metric |
