Door screw DIN 603 M10x70 stainless steel A2

Product detailed description

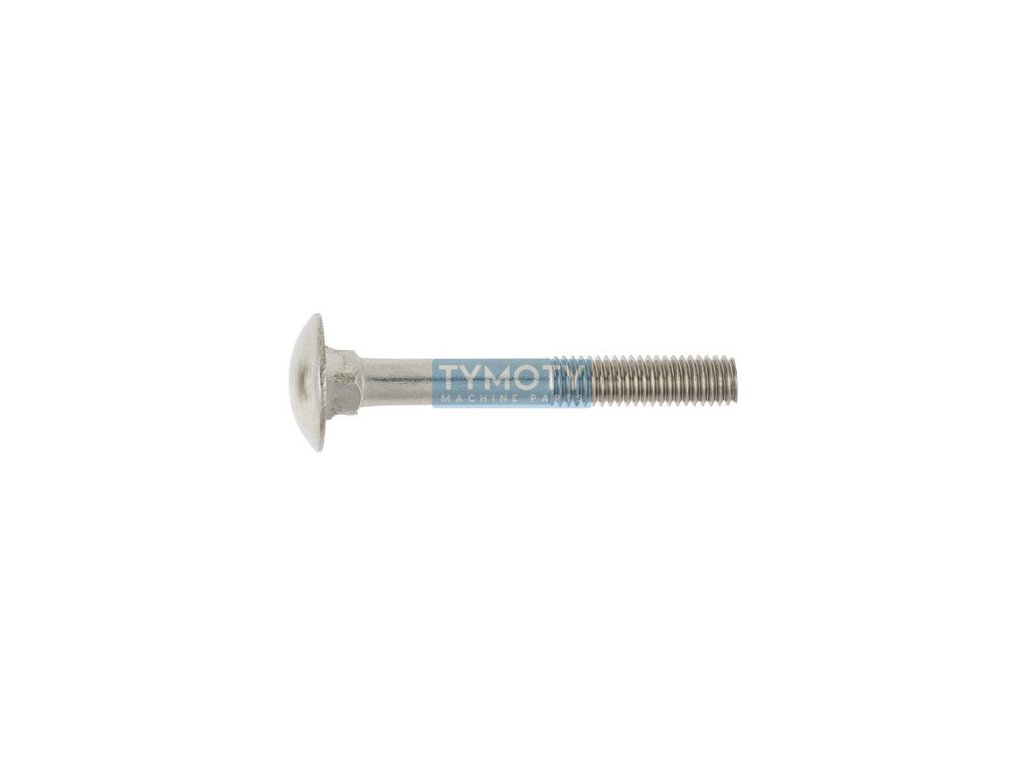

The DIN 603 M10x70 gate bolt is made of A2 grade stainless steel, which provides high corrosion resistance, making it ideal for use in outdoor and humid environments. This bolt is characterized by a flat hemispherical head and a square neck, which allows it to be securely fastened in wooden or metal structures without the need for additional holding when tightening the nut.

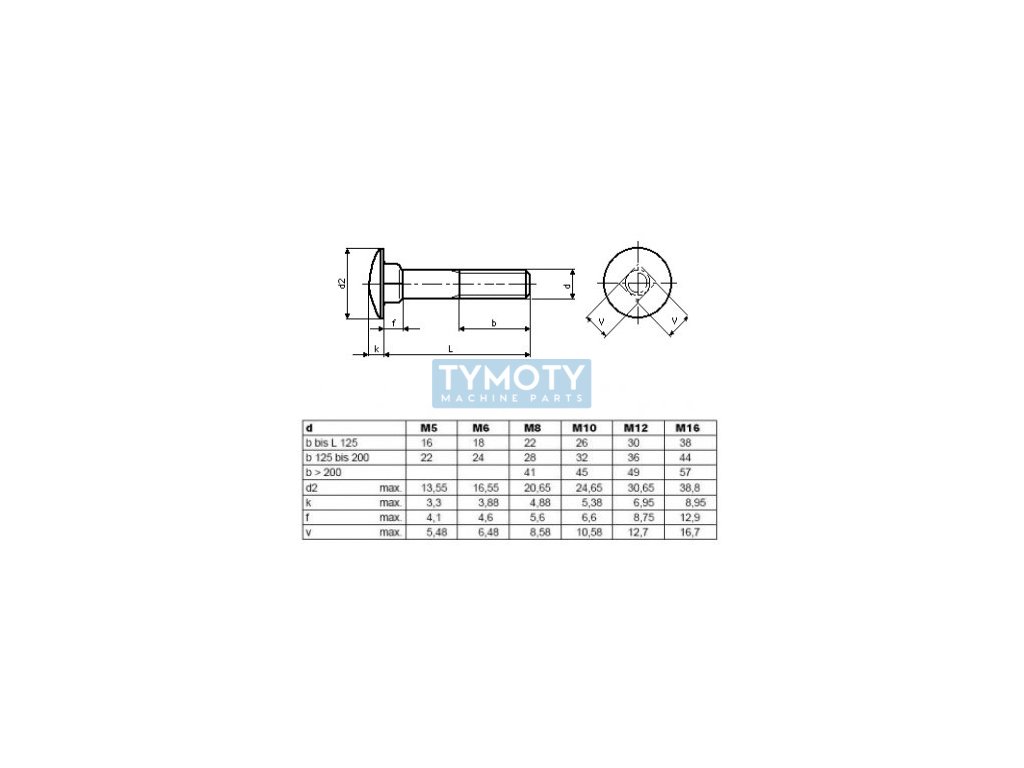

The DIN 603 standard, which is equivalent to ISO 8677 and ČSN 021319, defines the exact dimensions and shape of this bolt, thus ensuring its compatibility and interchangeability within international standards. The thread diameter is M10, which means that the outer diameter of the thread is 10 mm, and the bolt length is 70 mm, which is the distance from the bottom of the head to the end of the thread. The metric thread ensures a precise and tight connection with compatible nuts.

The use of this screw is suitable in applications where it is necessary to ensure a strong and stable connection, while its design allows for easy installation without the risk of damaging the surface of the material. Thanks to the material properties of A2 stainless steel, this screw is ideal for construction, engineering and other industrial applications where high reliability and long service life of the connections are required.
