Door screw DIN 603 M10x45 stainless steel A2

Product detailed description

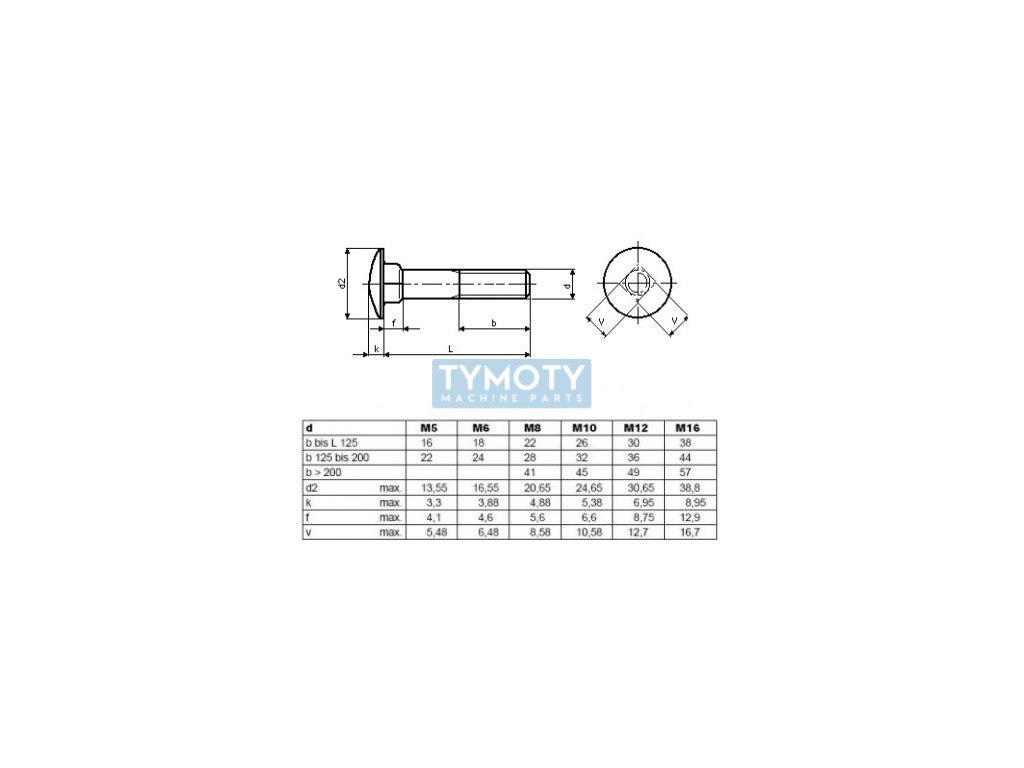

The DIN 603 M10x45 A2 stainless steel gate bolt is designed for applications where high corrosion resistance and aesthetic appearance are required. This bolt is manufactured according to DIN 603, which is equivalent to ISO 8677 and ČSN 021319, and is characterized by a flat hemispherical head and a square neck.

The diameter of the bolt is M10, which means that the outer diameter of the thread is 10 mm, and its length is 45 mm, which is the distance from the bottom of the head to the end of the thread. The head of the bolt is rounded, which allows for aesthetic installation, while the square neck under the head ensures that the bolt does not rotate during installation when inserted into a square hole or when used with the appropriate washer.

The screw material is A2 grade stainless steel, which provides good corrosion resistance in normal atmospheric conditions and is suitable for use outdoors or in environments with mildly aggressive chemical influences. The metric thread ensures compatibility with common nuts and other fasteners within European standards.

This screw is ideal for structures where it is necessary to ensure a solid connection with the possibility of quick and easy assembly, such as wooden structures, fences, benches and other applications where it is necessary to prevent the screw from turning during assembly.
