Door screw DIN 603 M10x25 8.8 galvanized

Product detailed description

The DIN 603 gate screw, also known as ČSN 021319, is made of galvanized steel grade 8.8, which guarantees high strength and corrosion resistance. This particular model has a metric thread with a diameter of M10 and a length of 25 mm, with a thread pitch of 1.50 mm.

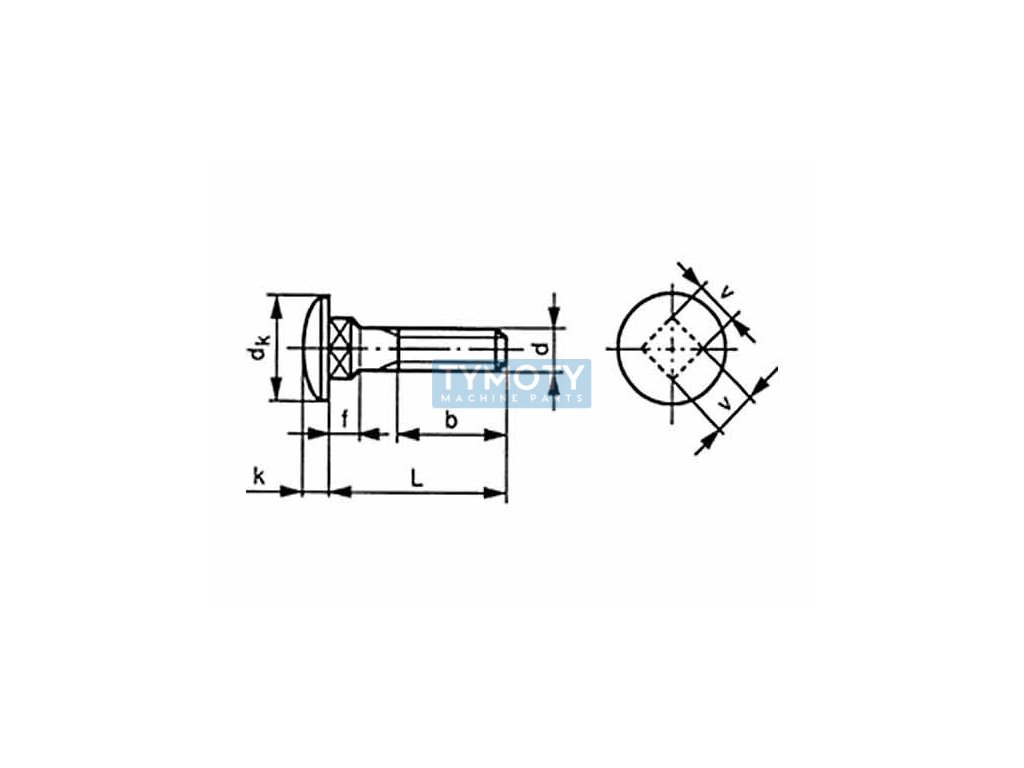

The screw head is flat hemispherical, which allows for aesthetic and functional embedding in the material, and is complemented by a square neck. This design ensures that the screw does not rotate during assembly when inserted into a square hole or groove, which facilitates installation and increases the reliability of the connection.

The strength class 8.8 indicates that the screw is suitable for applications where high tensile and shear strength is required. The white zinc coating provides additional protection against corrosion, which is especially important in environments with higher humidity or chemical aggressiveness.

This screw is ideal for use in the woodworking industry, furniture construction, construction and other areas where a strong and reliable connection of materials is required. Its design features and surface treatment make it suitable for long-term use in demanding conditions.
