Door screw DIN 603 M10x190 4.6 galvanized

Product detailed description

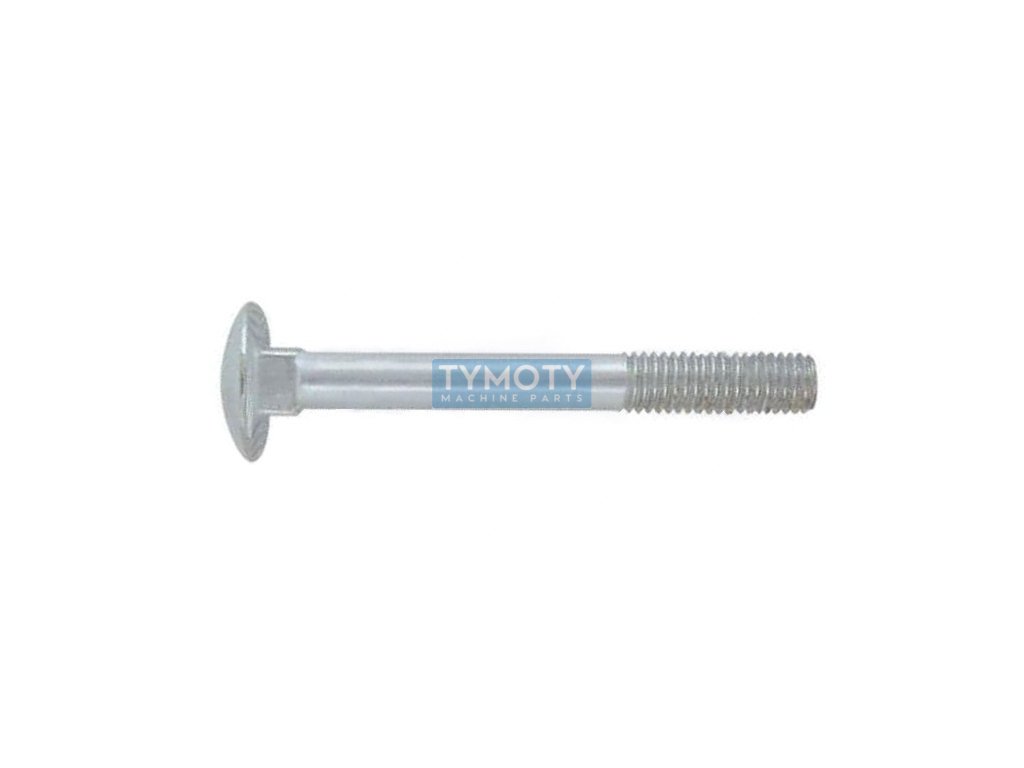

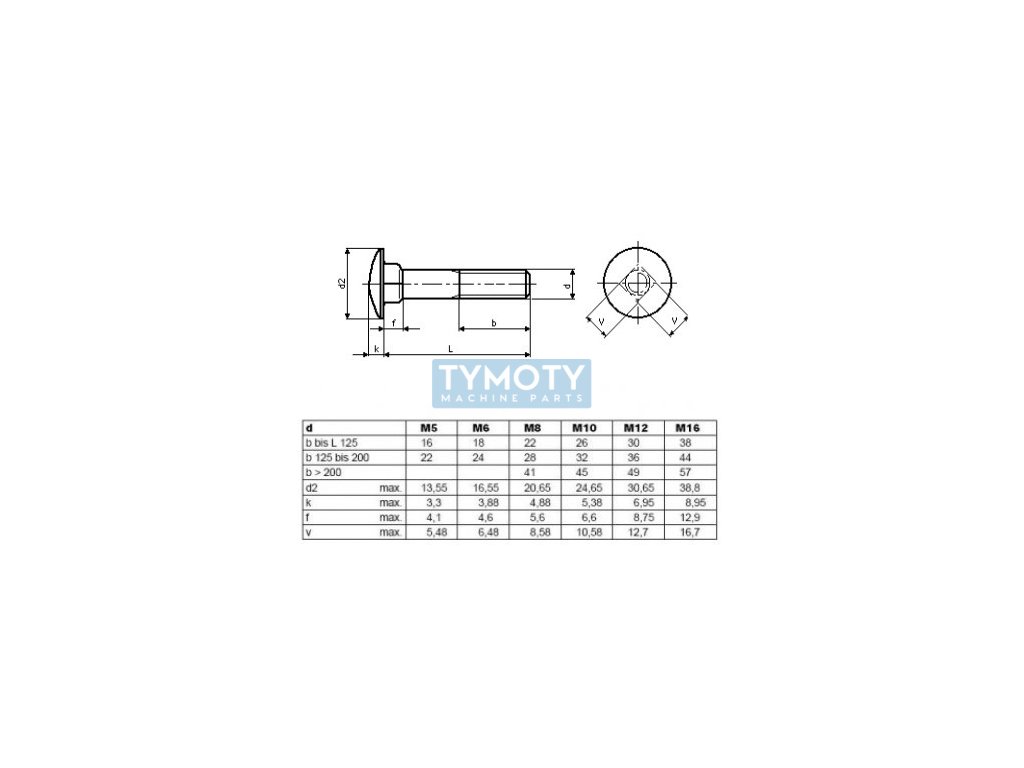

The DIN 603 carriage bolt with dimensions M10x190 is made of galvanized steel of grade 4.6, which guarantees its sufficient strength and resistance to corrosion. This bolt is characterized by a flat hemispherical head and a square neck, which allows its use in applications where it is necessary to prevent the bolt from turning when tightening the nut. The DIN 603 standard, equivalent to ISO 8677 and ČSN 021319, defines the exact dimensions and shape of the bolt, thus ensuring its compatibility with the relevant components.

The diameter of the bolt is M10 with a length of 190 mm, while the metric thread has a pitch of 1.50 mm. The bolt is made of steel with a strength class of 4.6, which means that it has a minimum yield strength of 240 MPa and a minimum tensile strength of 400 MPa. The white zinc coating provides additional protection against corrosion, which is especially important when used in outdoor or humid environments.

This type of screw is ideal for wooden structures where a strong and stable connection is required, while the square neck prevents the screw from turning during installation. The screw is suitable for use in construction, furniture making and in the assembly of various wooden structures.
