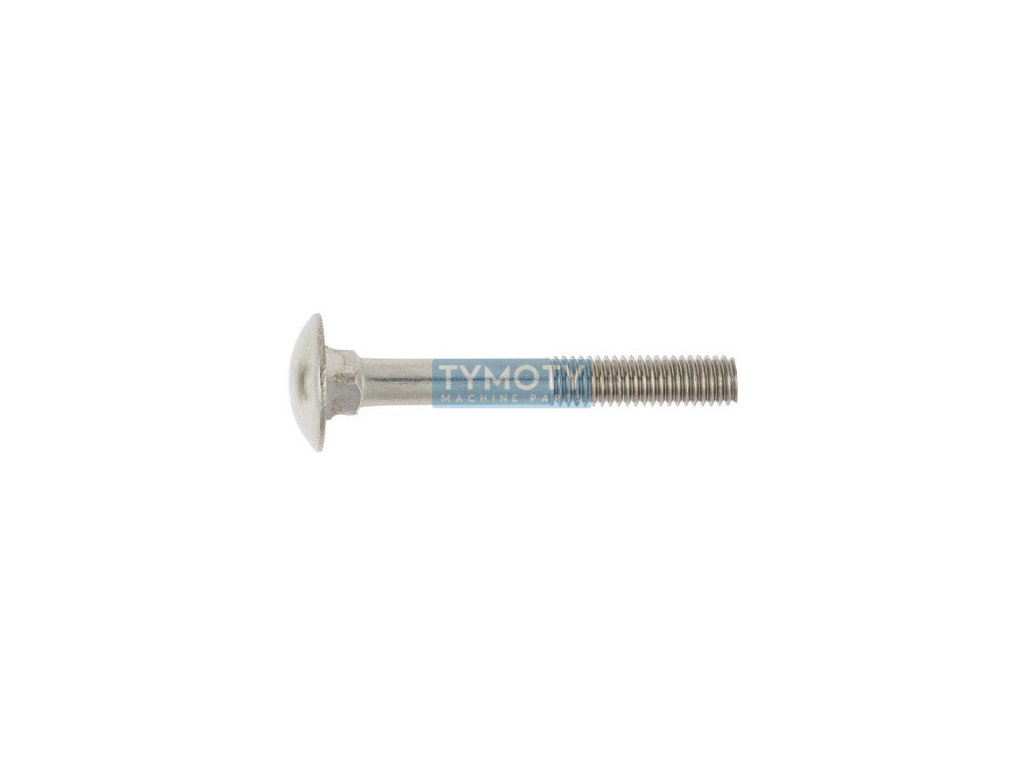

Door screw DIN 603 M10x170 4.6 without PU with nut DIN 555
Code: 827687
Product detailed description
Flat hemispherical head screw with square neck and nut, DIN 603/555, steel grade 4.6, uncoated.Additional parameters
| Category: | Fasteners > screws with rounded head > neck DIN 603 > steel 4.6 without treatment |
|---|---|
| Weight: | 0.124 kg |
| EAN: | 4043952120156 |
| CSN standard: | 021319 |
| Diameter D (mm): | M10 |
| DIN standard: | 603 |
| Fortress class: | 4,6 |
| Head shape: | rounded with square |
| ISO standard: | 8677 |
| Length L (mm): | 170 |
| Material: | steel |
| Pitch: | 1,50 |
| Surface finish: | without modification |
| Thread type: | metric |
