DIN 914 M5x16 set screw with Allen point

Product detailed description

The DIN 914 M5x16 Allen head set screw is a specific type of mechanical fastener designed to firmly secure parts by penetrating the tip into the material. This component is suitable for permanent adjustment where it is necessary to ensure stability and accuracy of the connection.

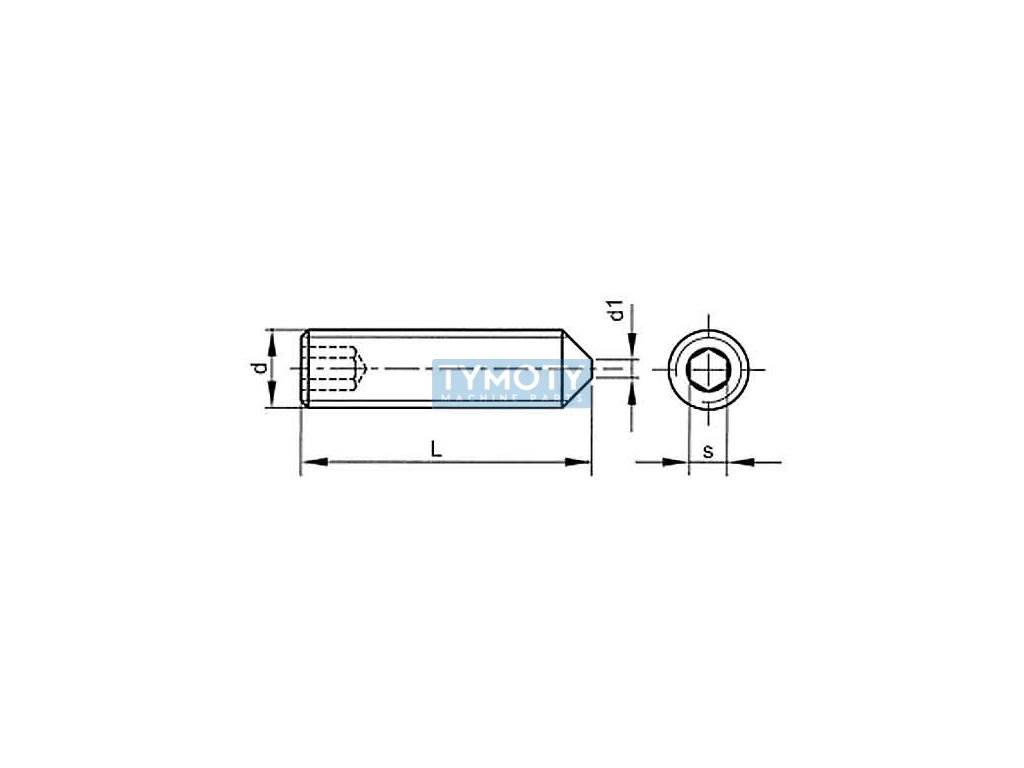

The screw has a metric thread with a diameter of M5 and a pitch of 0.80 mm. The length of the screw is 16 mm. The internal hexagon, also known as an Allen key, has a width of 2.5 mm, which allows reliable tightening and loosening using the appropriate tool. The design with a conical end ensures effective penetration into the material, thus achieving a firm and stable hold.

This screw is made of steel with a strength class of 45H, which guarantees high resistance to mechanical stress. The surface treatment is not applied, which means that the screw is in a raw state, without additional protection against corrosion. Therefore, it is suitable for use in environments where it is not exposed to aggressive corrosive conditions.

The screw complies with DIN 914, ISO 4027, ČSN 021191 and EN 24027, which guarantees its compatibility and interchangeability within international standards. This component is ideal for applications where it is necessary to achieve a firm and precise adjustment of parts, such as engineering and mechanical assemblies.
