DIN 914 M4x10 set screw with Allen point

Product detailed description

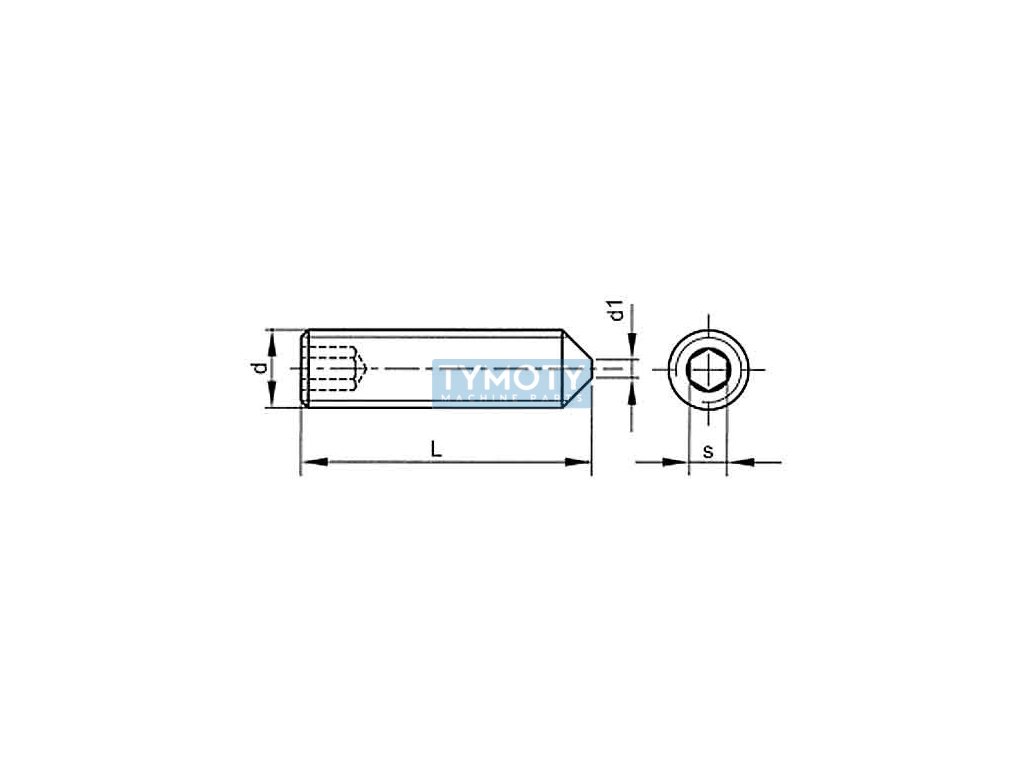

The set screw with internal hexagon and conical end according to DIN 914, with dimensions M4x10, is designed to firmly secure parts by penetrating the tip into the material. This screw is ideal for applications where permanent adjustment of components is required.

The screw has a metric thread with a diameter of 4 mm and a pitch of 0.70 mm. The width of the internal hexagon is 2 mm, which allows the use of a standard Allen key for manipulation. The screw is made of steel and belongs to the strength class 45H, which guarantees its high resistance to mechanical stress. The surface treatment is not applied, which can be an advantage in applications where it is necessary to ensure maximum contact of the tip with the material.

This set screw complies with ISO 4027, ČSN 021191 and EN 24027, which guarantees its compatibility and standardization on an international scale. Thanks to its properties, it is suitable for use in various industrial sectors where reliable and precise securing of components is required.
