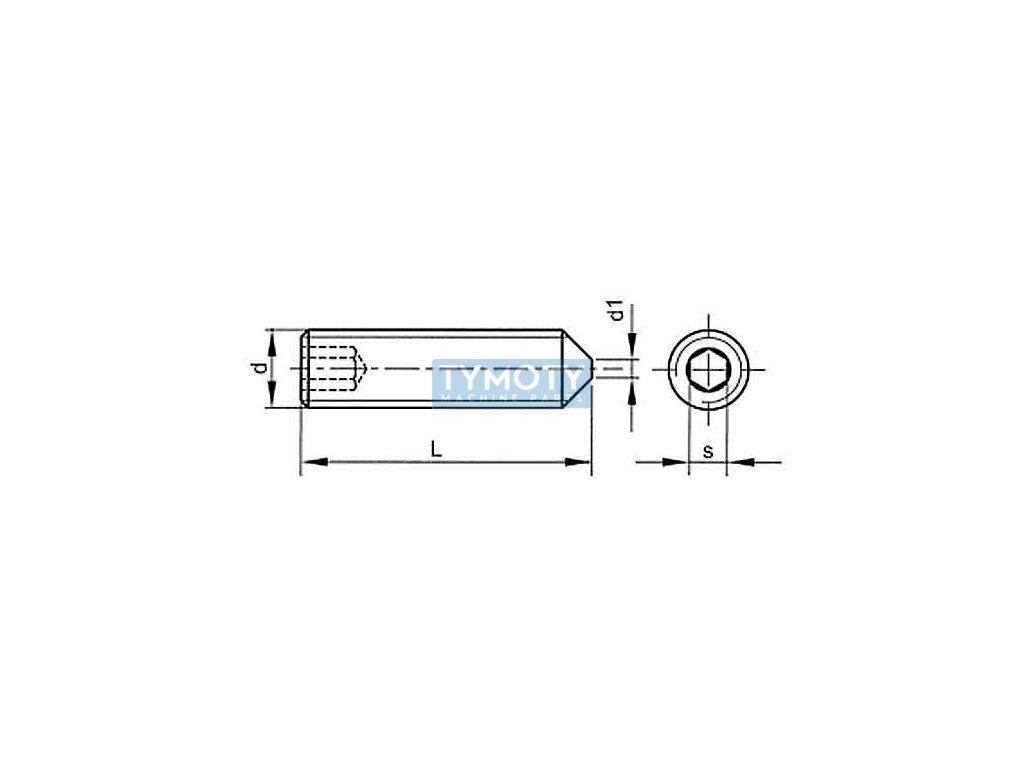

DIN 914 M2x3 set screw with Allen point

Product detailed description

The set screw with a point and an internal hexagon according to DIN 914, size M2x3, is designed to firmly secure parts by penetrating the point into the material. This type of screw is ideal for applications requiring permanent adjustment, where it is necessary to ensure a stable position of the components. The screw has a metric thread with a diameter of M2 and a pitch of 0.40 mm, which guarantees a precise and reliable connection.

The screw is made of steel with a strength class of 45H, which provides high resistance to mechanical stress and ensures a long service life in demanding conditions. The surface of the screw is untreated, which is suitable for applications where additional corrosion protection is not required.

The internal hexagon allows easy assembly and disassembly using an Allen key, which increases installation efficiency. The tapered end of the screw ensures a firm hold in the material, minimizing the risk of loosening during operation.

This set screw complies with ISO 4027, ČSN 021191 and EN 24027, ensuring its compatibility and standardization on an international scale. It is suitable for a wide range of industrial applications where precise and reliable fastening of parts is required.
