DIN 914 M10x12 set screw with Allen point

Product detailed description

The set screw with a point and an internal hexagon according to DIN 914, size M10x12, is specially designed for the firm securing of parts by means of the penetration of the conical point into the material. This type of screw is ideal for applications where permanent adjustment and securing of components is required. The screw is equipped with an internal hexagon, which allows for easy assembly and disassembly using an Allen key.

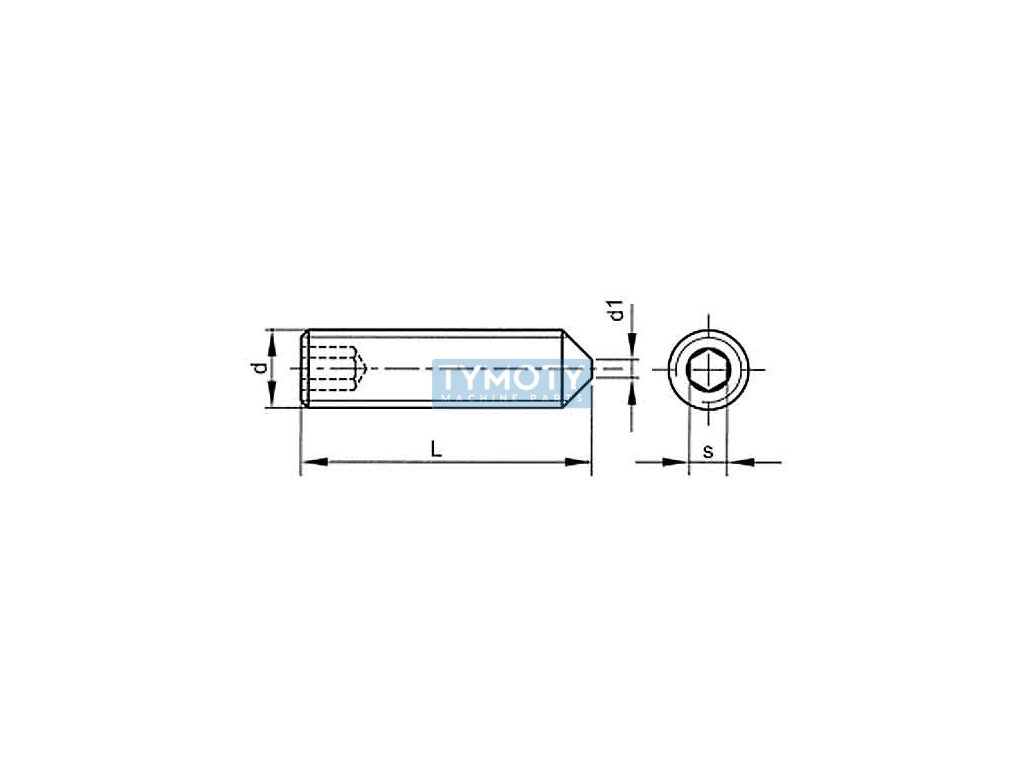

The screw has a metric thread with a diameter of M10 and a length of 12 mm, with a thread pitch of 1.50 mm. The diameter of the conical point is 2.5 mm and the width of the internal hexagon is 5 mm. The screw is made of steel and belongs to the strength class 45H, which guarantees high resistance to mechanical stress. The surface of the screw is not treated, which is suitable for applications where additional surface treatment is not required.

This set screw complies with ISO 4027, ČSN 021191 and EN 24027, which ensures its compatibility and standardization within international and national standards. It is suitable for use in various industrial sectors where reliable and firm securing of parts is required.
