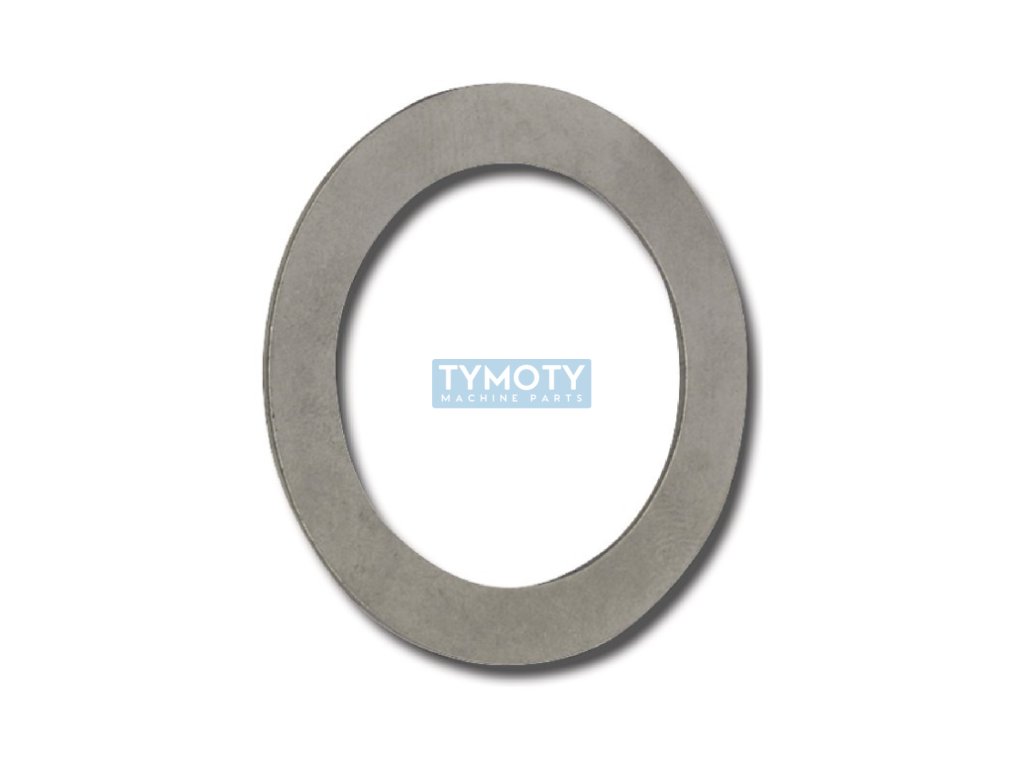

Delimiting washer DIN 988 90x110x3.5

Product detailed description

The shim according to DIN 988 with dimensions 90x110x3.5 mm is a precisely machined component designed to adjust axial clearances in various mechanical assemblies. This type of shim is ideal for applications where precise positioning of bearings, shafts and gearboxes is required, ensuring optimal functionality and extending the service life of mechanical systems.

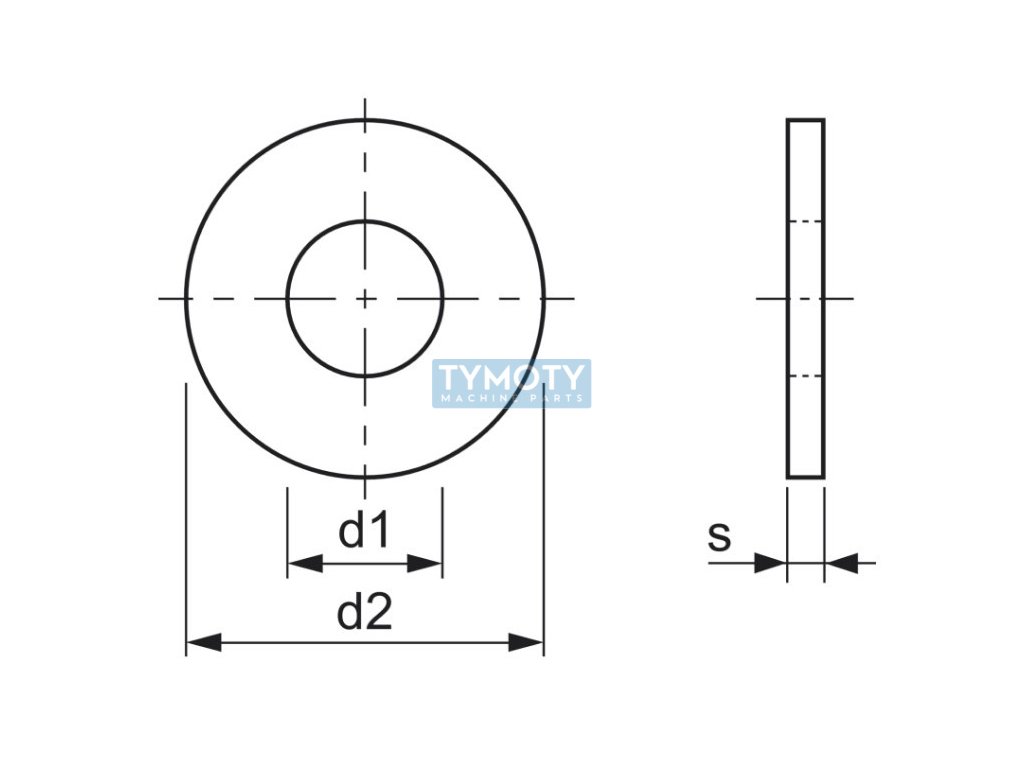

The shim has an outer diameter d2 of 110 mm and an inner diameter d1 of 90 mm, while its thickness (width s) is 3.5 mm. These dimensions are precisely maintained according to DIN 988, which guarantees compatibility with other components within standardized mechanical applications.

The shim material is hardened steel 2K50, which provides high strength and resistance to mechanical wear. Hardening the steel increases its hardness and resistance to deformation, which is crucial for applications where high loads occur. No surface treatment is applied, which can be advantageous in situations where the natural properties of the steel need to be preserved or where the washer is used in an environment that does not require additional corrosion protection.

This spacer washer is an essential component for precision engineering applications where axial clearance control is critical and where high accuracy and reliability are required.
