Delimiting washer DIN 988 8x14x1 stainless steel A2
Code: 852877
Product detailed description

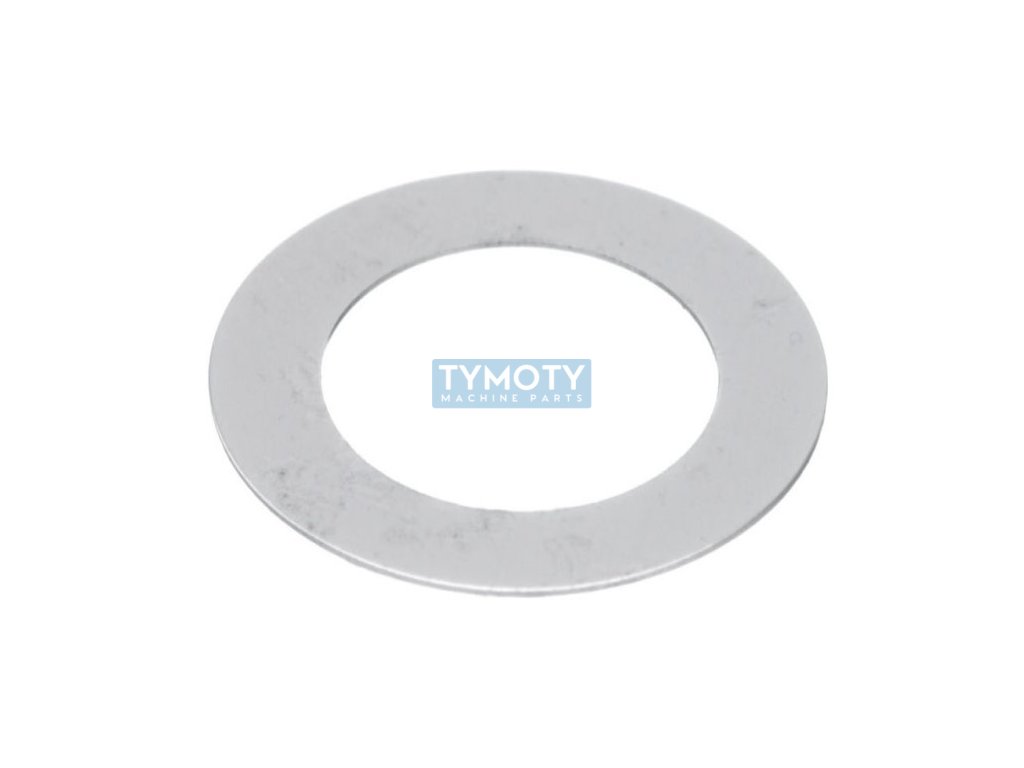

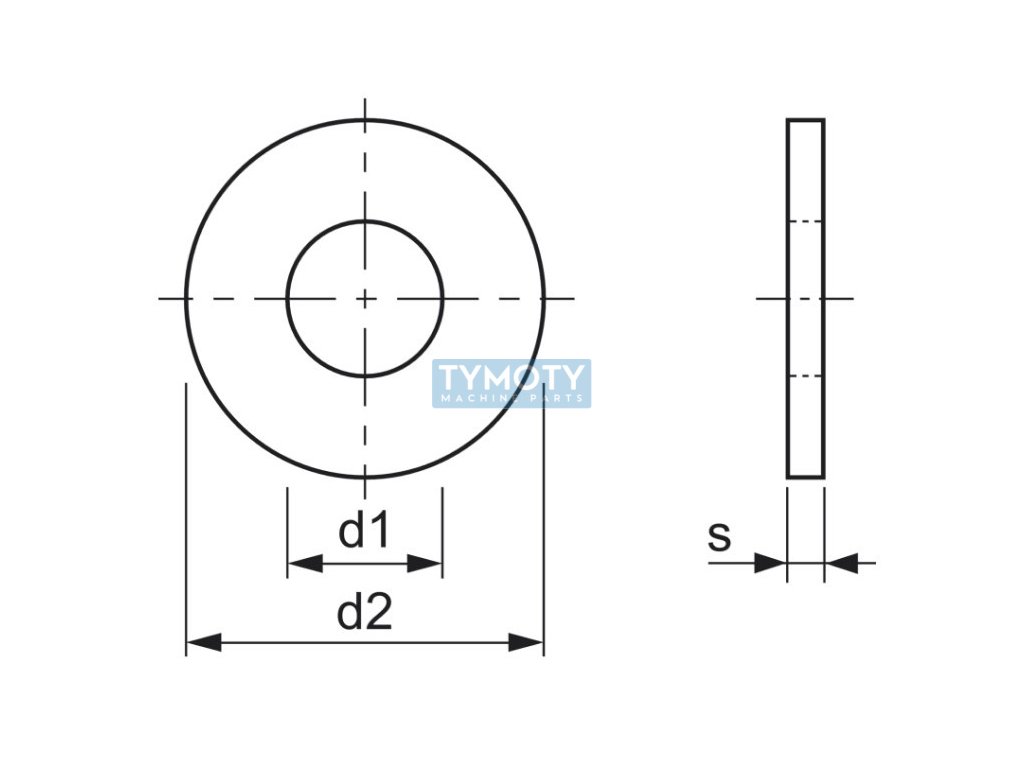

The shim washer according to DIN 988 with dimensions 8x14x1 mm is made of stainless steel grade A2 (material 1.4301), which guarantees high corrosion resistance and suitability for use in various environments, including slightly aggressive ones. This washer is intended for precise adjustment of axial clearances in mechanical assemblies, which is crucial for the proper functioning of mechanical systems such as bearings, shafts and gearboxes.The washer has an inner diameter (d1) of 8 mm and an outer diameter (d2) of 14 mm, while its thickness (width s) is 1 mm. These dimensions allow it to be used in applications where precise control of distances and clearances between components is required. The manufacturing tolerance is in accordance with ISO 4759-3/AB, which guarantees accuracy and consistency of dimensions.
Due to its design and material properties, this washer is ideal for use in industrial applications where precision and reliability are important. Its use can contribute to extending the life of mechanical assemblies and reducing component wear.
Additional parameters
| Category: | Fasteners > pads flat > demarcation DIN 988s = 1.00 mm |
|---|---|
| Weight: | 0.001 kg |
| EAN: | 4043952350560 |
| Diameter d1 (mm): | 8 |
| Diameter D2 (mm): | 14 |
| DIN standard: | 988 |
| Material: | stainless steel A2 |
| Width s (mm): | 1 |
