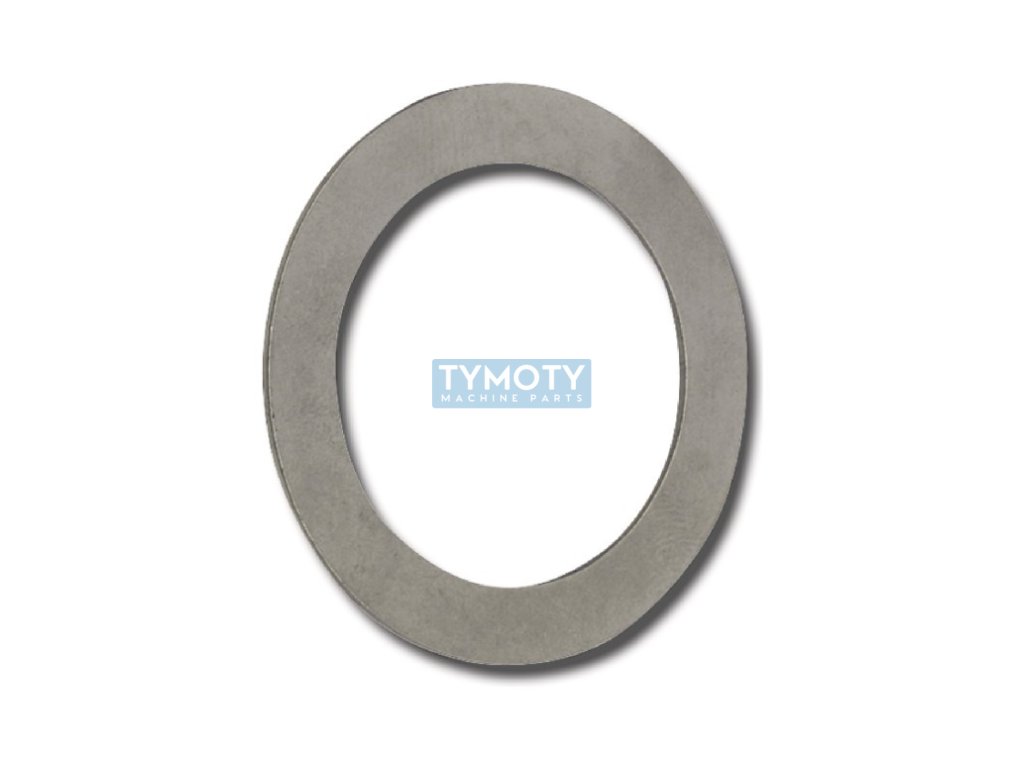

Delimiting washer DIN 988 8x14x0.25

Product detailed description

The shim according to DIN 988 with dimensions 8 x 14 x 0.25 mm is intended for precise adjustment of axial clearances in mechanical assemblies. This shim is made of hardened 2K50 steel, which guarantees high strength and resistance to mechanical wear. Thanks to its thickness of 0.25 mm, it is ideal for fine-tuning the positions of components such as bearings, shafts and gearboxes.

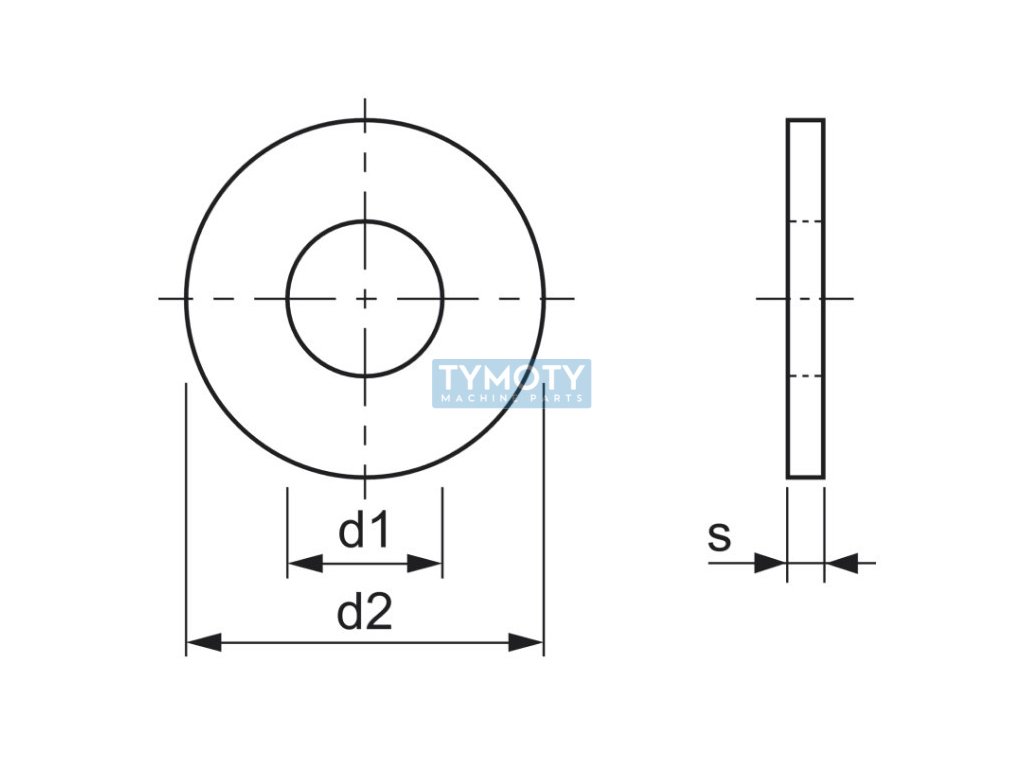

The shim has an inner diameter (d1) of 8 mm and an outer diameter (d2) of 14 mm, which allows it to be used in a wide range of applications where precise definition of gaps between components is required. The surface treatment is not applied, which is typical for applications where additional corrosion protection is not required or where use is expected in an environment with minimal risk of corrosion.

This washer is part of a group of components known as shim rings, spacing washers or supporting rings, which are essential for precision mechanical assemblies. Due to its accuracy and quality, this washer is suitable for use in demanding industrial applications where accuracy and reliability are critical.
