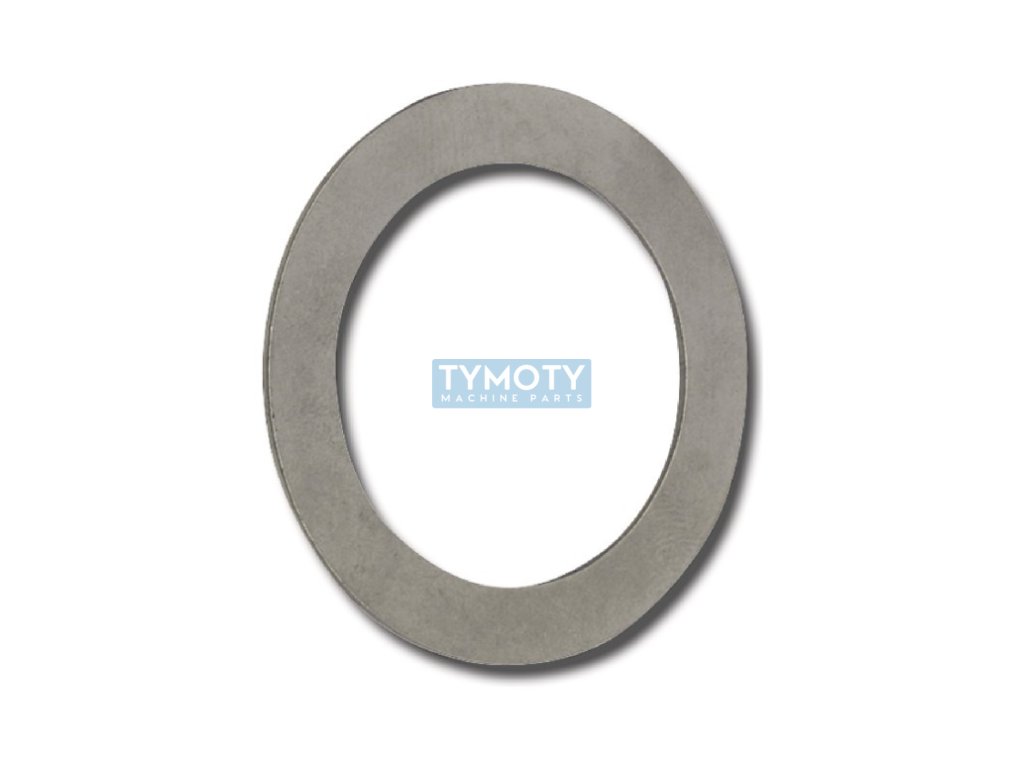

Delimiting washer DIN 988 50x62x2

Product detailed description

The shim ring according to DIN 988 with dimensions 50x62x2 mm is specifically designed for precise adjustment of axial clearances in mechanical assemblies. This component is ideal for applications involving bearings, shafts and gearboxes, where it is necessary to ensure precise definition of the space between individual components.

The washer has an inner diameter (d1) of 50 mm and an outer diameter (d2) of 62 mm, while its thickness (width s) is 2 mm. It is made of hardened steel 2K50, which guarantees high strength and resistance to mechanical wear. The material is without surface treatment, which is suitable for applications where additional corrosion protection or aesthetic modifications are not required.

This washer is classified as a shim ring, which means that it is used to precisely define distances in mechanical assemblies. The use of shims is critical to ensuring the proper function and longevity of mechanical systems where movement and wear caused by excessive clearances need to be minimized.
