Delimiting washer DIN 988 28x40x0.5
Code: 852625
Product detailed description

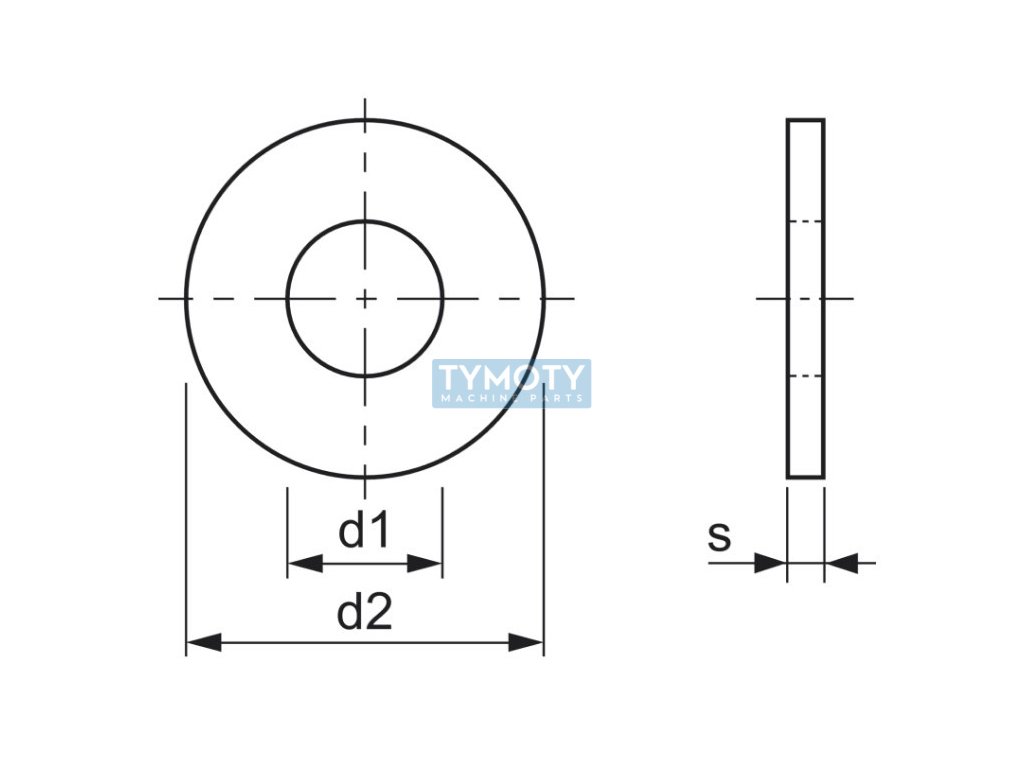

The shim according to DIN 988 with dimensions 28 x 40 x 0.5 mm is designed for precise adjustment of axial clearances in mechanical assemblies. This shim is ideal for applications where precise positioning of components such as bearings, shafts and gearboxes is required.The shim has an inner diameter (d1) of 28 mm and an outer diameter (d2) of 40 mm, while its thickness (width s) is 0.5 mm. It is made of hardened 2K50 steel, which guarantees high strength and resistance to mechanical stress. The surface treatment is not applied, which is suitable for applications where additional corrosion protection or aesthetic modifications are not required.
This shim belongs to the category of shim rings, also known as shim rings, which are used for precise adjustment of gaps between components. Thanks to its accuracy and material quality, it is suitable for use in demanding industrial applications where it is necessary to ensure precise and reliable positioning of components.
Additional parameters
| Category: | Fasteners > pads flat > demarcation DIN 988 > hardened steel without PU > s = 0.50 mm |
|---|---|
| Weight: | 0.003 kg |
| EAN: | 4043952349083 |
| Diameter d1 (mm): | 28 |
| Diameter D2 (mm): | 40 |
| DIN standard: | 988 |
| Material: | hardened steel 2K50 |
| Surface finish: | without modification |
| Width s (mm): | 0,5 |
