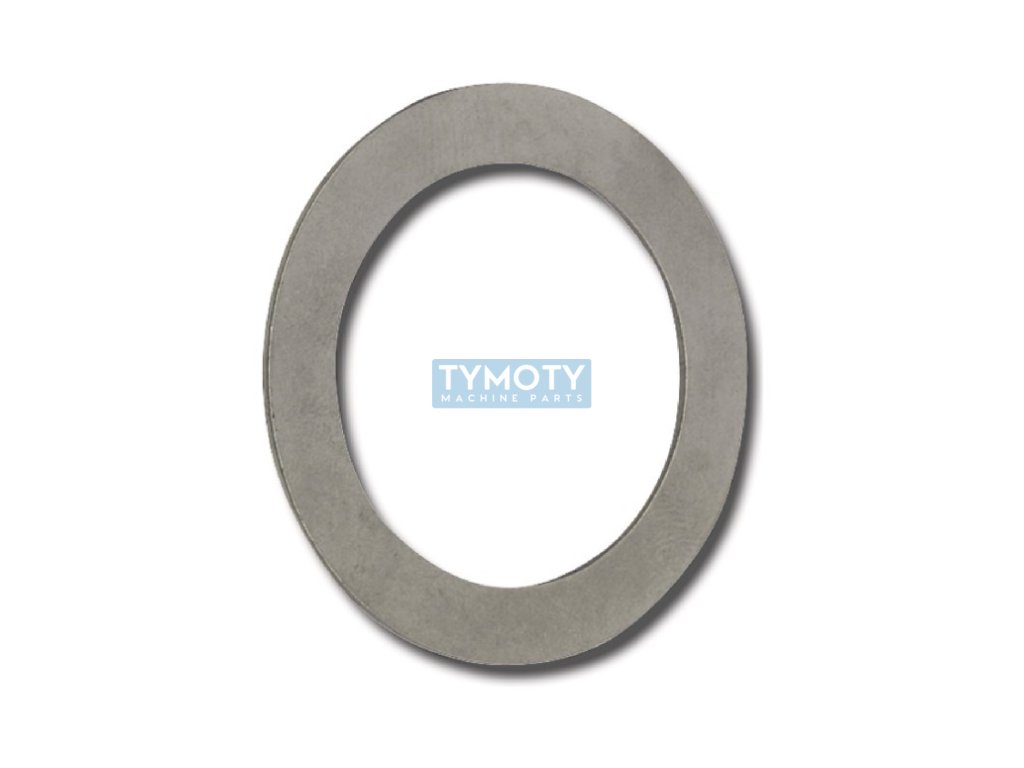

Delimiting washer DIN 988 17x24x0.3

Product detailed description

The shim according to DIN 988 with dimensions 17x24x0.3 mm is a precision component designed for adjusting axial clearances in mechanical assemblies. This component is ideal for applications in bearings, shafts and gearboxes, where precise positioning of components is required. The shim has an inner diameter (d1) of 17 mm and an outer diameter (d2) of 24 mm, while its thickness (width s) is 0.3 mm.

It is made of hardened 2K50 steel, which guarantees high strength and resistance to mechanical wear, which is key for long-term reliability in demanding operating conditions. The surface treatment is not applied, which can be an advantage in applications where direct metal-to-metal interaction is required without additional layers that could affect the accuracy of the adjustment.

This washer is included in the category of shim rings, also known as shim rings, which are essential for fine-tuning and optimizing mechanical assemblies. Thanks to its thin design, it allows for precise adjustment without the need to intervene in major components, thus contributing to efficient maintenance and extending the life of the equipment.
