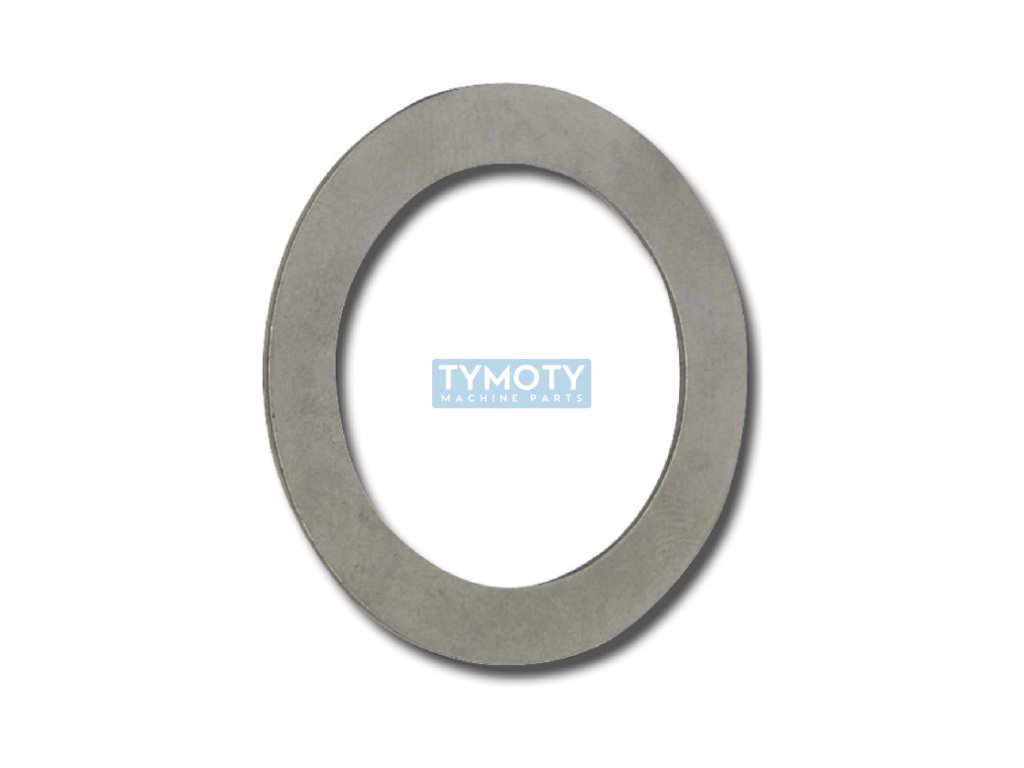

Delimiting washer DIN 988 16x22x0.25

Product detailed description

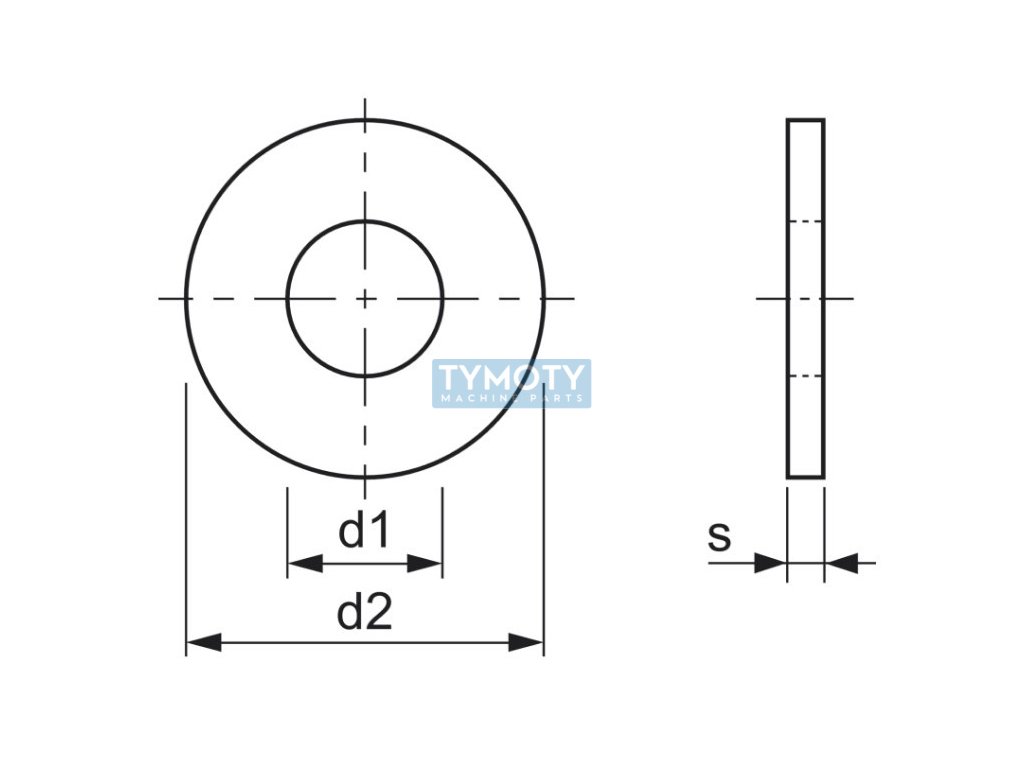

The shim according to DIN 988 with dimensions 16x22x0.25 mm is precisely designed for adjusting axial clearances in mechanical assemblies. This component is ideal for applications where precise positioning of bearings, shafts and gearboxes is required. The shim has an inner diameter (d1) of 16 mm and an outer diameter (d2) of 22 mm, while its thickness (width s) is only 0.25 mm, which allows for fine-tuning of gaps in mechanical assemblies.

It is made of hardened 2K50 steel, which guarantees high strength and resistance to mechanical wear. The surface treatment is not applied, which is common for this type of shim, since their primary function is precise mechanical positioning and not corrosion protection. This washer falls into the category of shims, also known as shims or support rings, and is often used in precision engineering applications where it is critical to maintain precise tolerances and minimize axial play.
