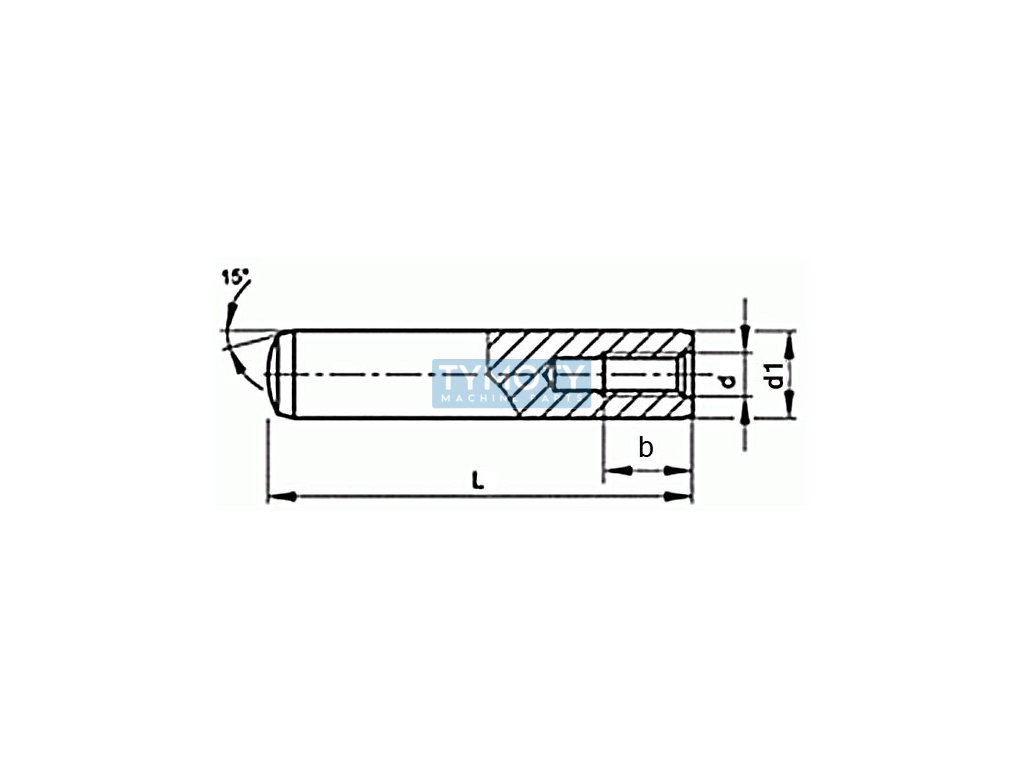

Cylindrical pin hardened internal thread DIN 7979D 8x28 m6

Product detailed description

The hardened cylindrical pin with internal thread according to DIN 7979D, ISO 8735 and ČSN 022149 is a precision connecting component designed for applications requiring high load capacity and the possibility of disassembly. This pin has a diameter of 8 mm and a length of 28 mm, and is made of hardened steel with a hardness of H60, which ensures its resistance to wear and mechanical stress.

The m6 tolerance guarantees an exact fit in the hole, which is critical for applications where high accuracy and minimal clearance between components are required. The internal thread allows for easy disassembly using a lead screw, which is advantageous when maintaining or replacing components.

This type of pin is suitable for use in mechanical engineering and in the manufacture of equipment, where it is necessary to ensure a firm and precise connection of components. Its design and material properties make it suitable for use in demanding conditions where high reliability and resistance to mechanical stress are required.
