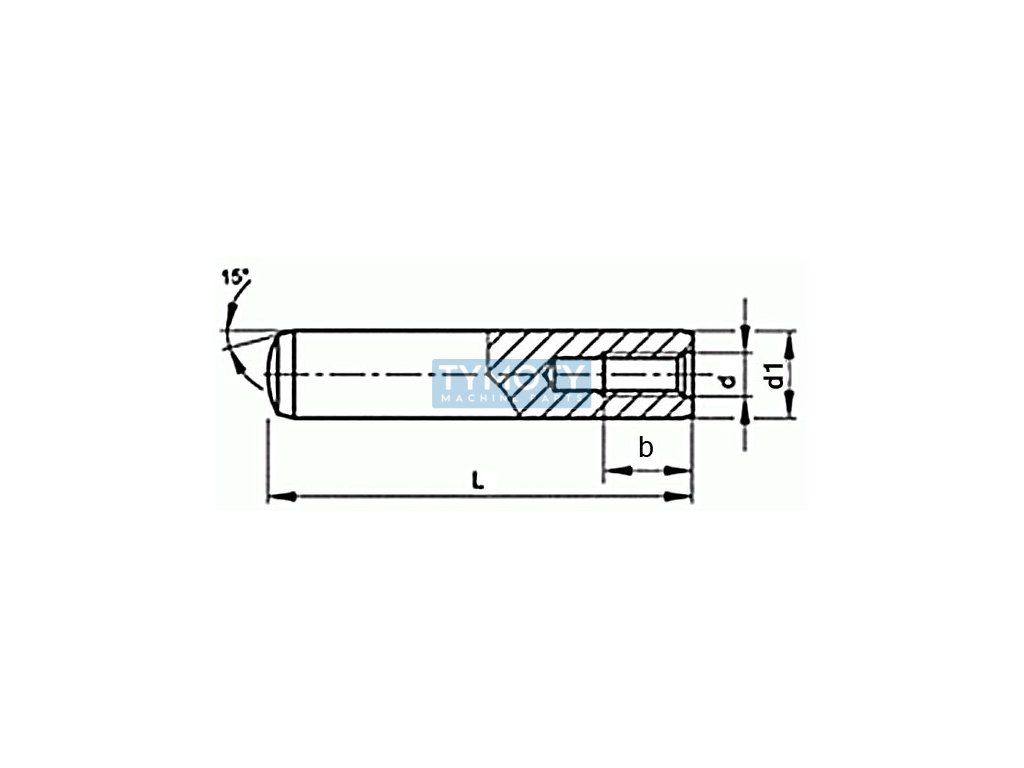

Cylindrical pin hardened internal thread DIN 7979D 8x100 m6

Product detailed description

The hardened cylindrical pin with internal thread according to DIN 7979D, ISO 8735 and ČSN 022149 is a precision connecting component designed for load-bearing connections with the possibility of disassembly. This pin has a diameter of 8 mm and a length of 100 mm, and is made of steel with a hardness of H60. Hardening ensures increased resistance to wear and mechanical stress, which is important for applications requiring high accuracy and reliability.

The internal thread allows easy disassembly using a lead screw, which is convenient for maintenance or replacement of components. The m6 tolerance guarantees an exact fit, which is essential for applications where minimal clearance between the connected parts is required. This pin is suitable for use in mechanical engineering where a precise and solid connection is required, for example in the assembly of machines, equipment or structures.

The pin is supplied without surface treatment, which allows it to be further customized according to specific application needs, such as surface treatment to increase corrosion resistance. It is part of the parallel pin family and can be compared to ISO 8733, which simplifies its integration into existing systems and standards.
