Cylindrical pin hardened internal thread DIN 7979D 6x20 m6

Product detailed description

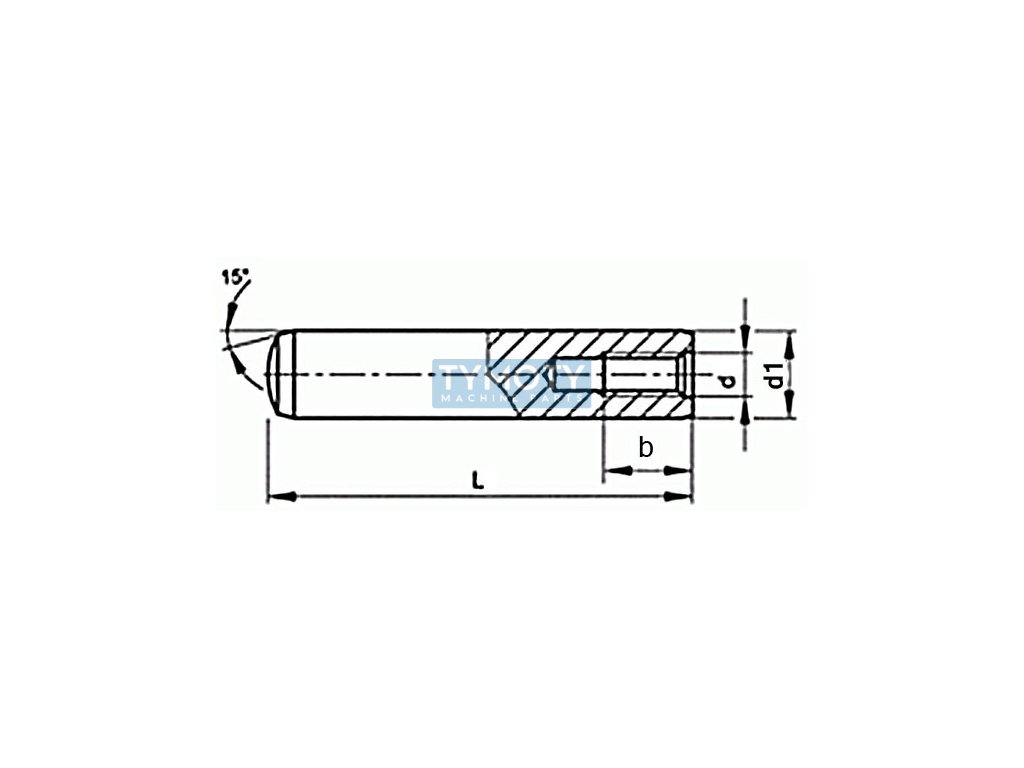

The hardened cylindrical pin with internal thread according to DIN 7979D, ISO 8735 and ČSN 022149 is a precisely processed component designed for creating load-bearing connections with the possibility of disassembly. This pin has a diameter of 6 mm and a length of 20 mm, while its tolerance is defined as m6, which guarantees high accuracy and reliability during assembly. The internal thread allows for easy disassembly using a guide screw, which is advantageous for maintenance or replacement of components.

The pin is made of hardened steel, which provides it with increased resistance to mechanical wear and guarantees a long service life even in difficult operating conditions. The H60 steel from which the pin is made is uncoated, which is suitable for applications where additional corrosion protection is not required.

This type of pin is often used in mechanical engineering and industry for precise connection of two or more components, where high precision and joint strength are required. Due to its design and material properties, it is ideal for applications where it is necessary to ensure a strong and stable connection with the possibility of repeated disassembly without damage to the connected parts.
