Cylindrical pin hardened internal thread DIN 7979D 20x40 m6

Product detailed description

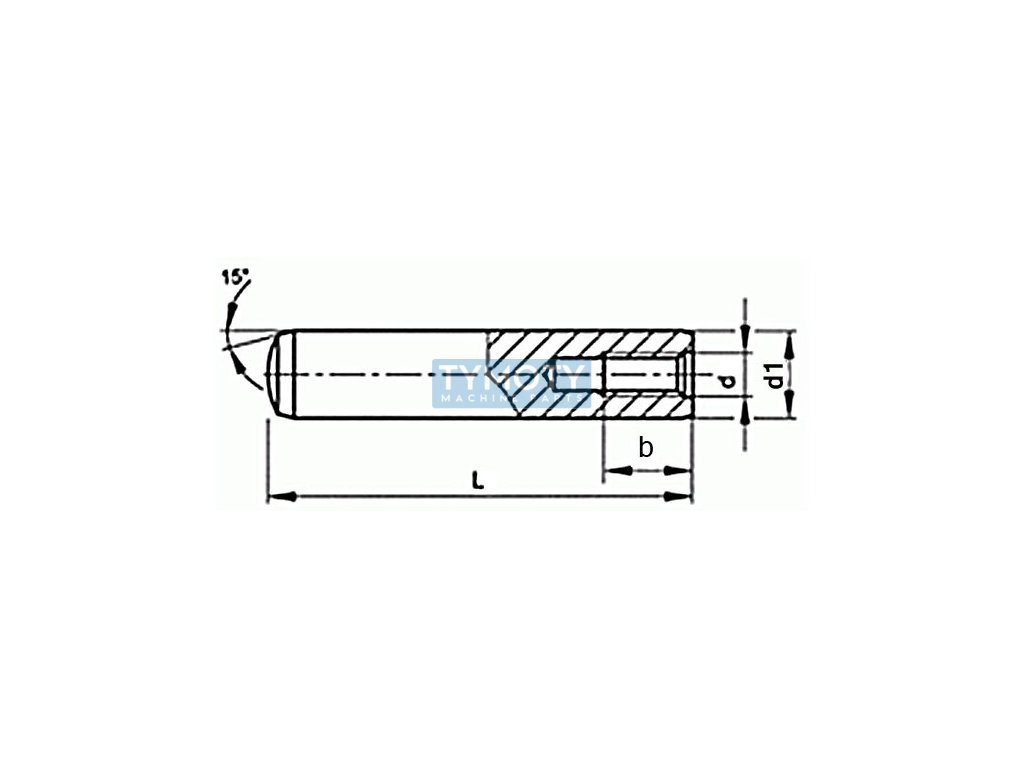

The hardened cylindrical pin with internal thread according to DIN 7979D, ISO 8735 and ČSN 022149 is designed for precise and load-bearing connections that allow disassembly using a guide screw. This component is made of steel with a hardness of H60 and has no surface treatment, which guarantees its high durability and reliability in demanding conditions.

The pin has dimensions of 20 mm in diameter and 40 mm in length, falling within the tolerance field m6. The tolerance m6 means that the pin is manufactured with high precision, which ensures a firm and precise fit in the hole. The internal thread allows for easy assembly and disassembly, which is advantageous in applications where frequent disassembly and reassembly of connections is required.

This type of pin is ideal for use in mechanical engineering, where precise and strong connections are required, for example in the construction of machines, equipment and tools. Its design allows for efficient force transmission and joint stability, which is crucial for the long-term reliability and functionality of mechanical systems.
