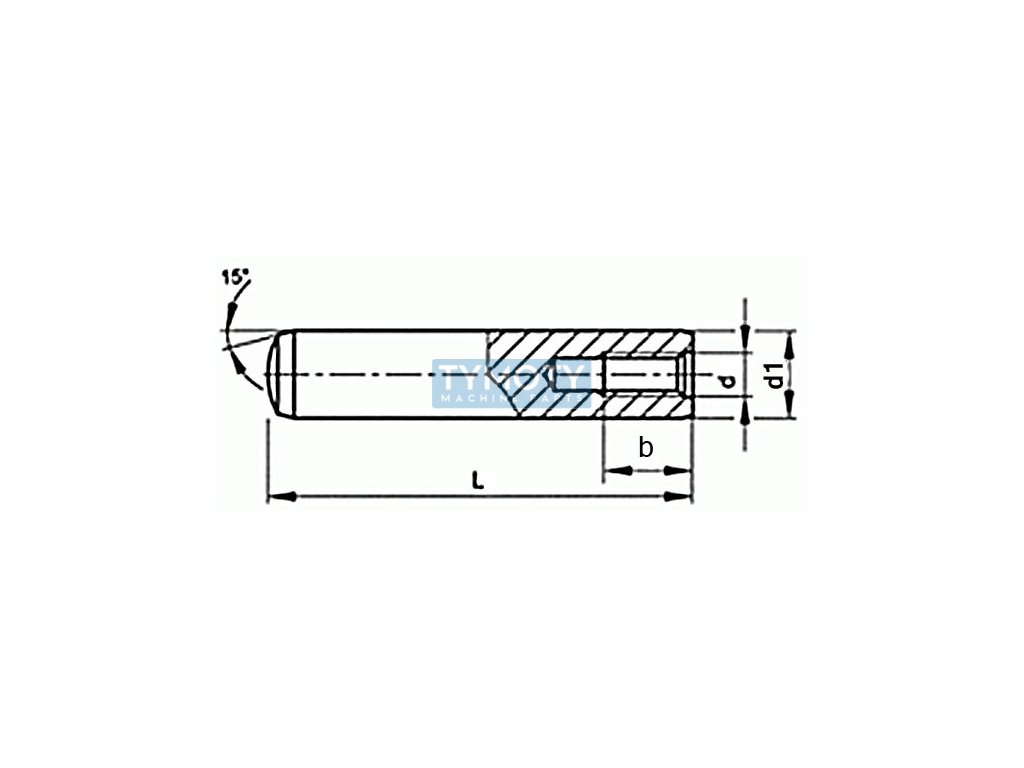

Cylindrical pin hardened internal thread DIN 7979D 16x100 m6

Product detailed description

The hardened cylindrical pin with internal thread according to DIN 7979D, ISO 8735 and ČSN 022149 is designed for precise and load-bearing connections that allow disassembly using a lead screw. This component is made of steel that is hardened to H60 hardness, which ensures high wear resistance and long service life in demanding conditions. The pin has an outer diameter of 16 mm and a length of 100 mm, and is manufactured with a tolerance of m6, which ensures a precise fit in applications where high accuracy is required.

The internal thread allows for easy disassembly and reassembly, which is advantageous in cases where regular maintenance or replacement of components is required. This type of pin is often used in engineering and industrial applications where it is necessary to ensure a strong and precise connection between two or more parts.

The pin is supplied without surface treatment, which means that it is suitable for applications where additional corrosion protection is not required, or where subsequent surface treatment is planned according to specific customer requirements. Due to its properties, it is ideal for use in precision mechanisms such as tools, fixtures and equipment, where accuracy and reliability of connections are important.
