Cylindrical pin hardened internal thread DIN 7979D 12x80 m6

Product detailed description

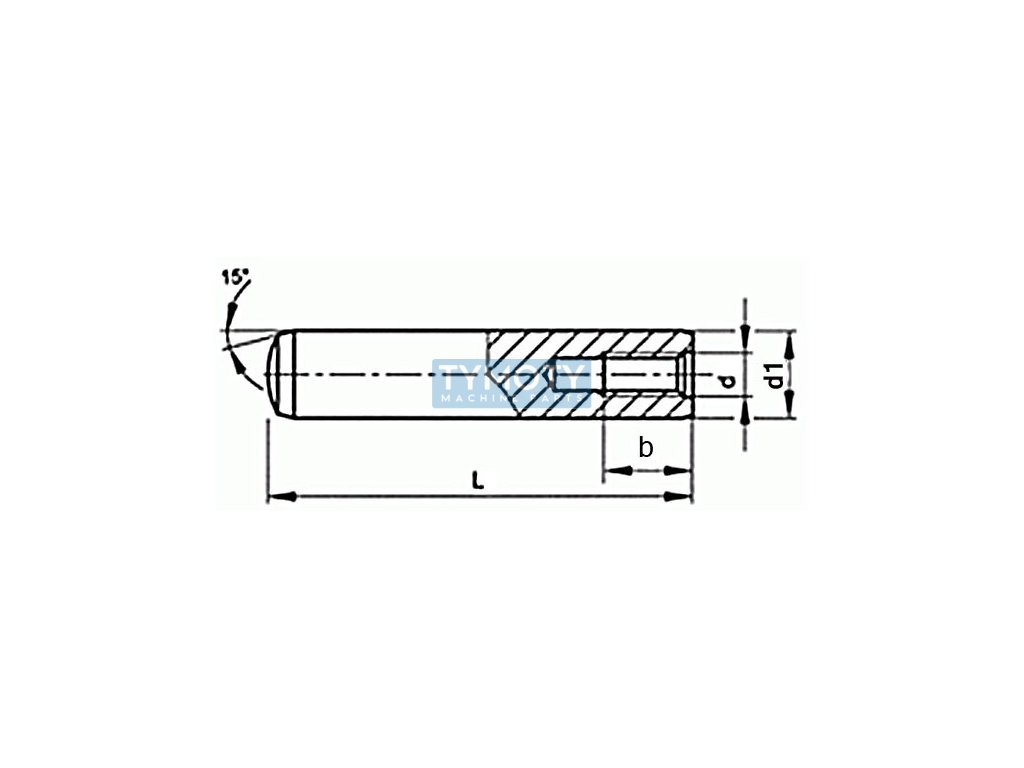

The hardened cylindrical pin with internal thread according to DIN 7979 D, ISO 8735 and ČSN 022149 is a precision-machined component designed to create load-bearing and precise connections with the possibility of disassembly. This pin has dimensions of 12 mm in diameter and 80 mm in length, and is made of steel with a hardness of H60, which guarantees its high resistance to wear and mechanical stress.

The pin is hardened, which means that it has undergone a heat treatment process that increases its hardness and strength. The internal thread allows for easy disassembly using a guide screw, which simplifies maintenance and reuse in various applications.

The m6 tolerance ensures a precise fit, which is crucial for applications where high precision and reliability of connections are required. This component is ideal for use in engineering and construction, where it is necessary to ensure a strong and stable connection between two or more parts.

The pin is supplied without surface treatment, which means that it is suitable for use in environments where there are no special requirements for corrosion resistance. If necessary, an additional surface treatment can be applied according to the specific requirements of the project. This type of pin is often used in combination with other fasteners in various industries.
