Cylindrical pin hardened internal thread DIN 7979D 12x32 m6

Product detailed description

The hardened cylindrical pin with internal thread according to DIN 7979D, ISO 8735 and ČSN 022149 is designed for precise and load-bearing connections that allow disassembly using a guide screw. This component is made of steel that is hardened to a hardness of H60, which guarantees high wear resistance and long service life even in demanding applications. The pin is without surface treatment, which is typical for applications where precise tolerance and a solid connection are required.

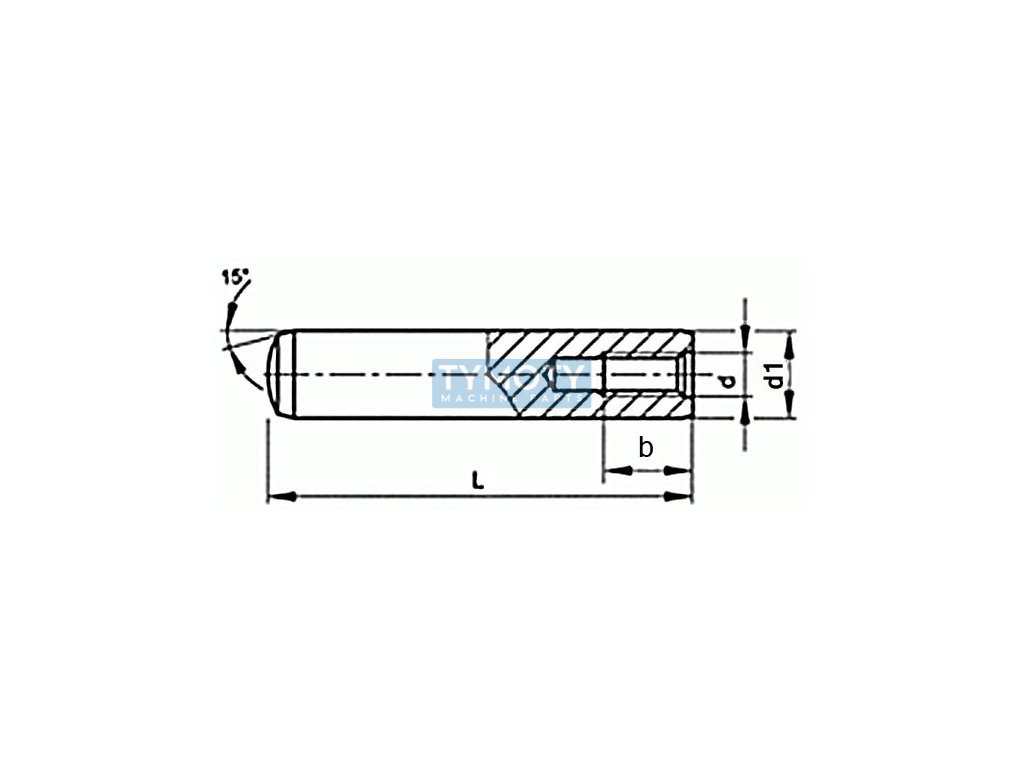

The cylindrical pin has dimensions of 12 mm in diameter and 32 mm in length, falling within the tolerance field of m6. This tolerance ensures a precise fit in the hole, minimizing the possibility of unwanted movements or vibrations in the connection. The internal thread allows for easy assembly and disassembly, which is advantageous for maintenance or replacement of components.

Dowels of this type are often used in mechanical engineering and industrial production, where it is necessary to ensure a firm and precise connection of two or more parts. Due to their design and material properties, they are suitable for applications where high precision and reliability of connections are required.
