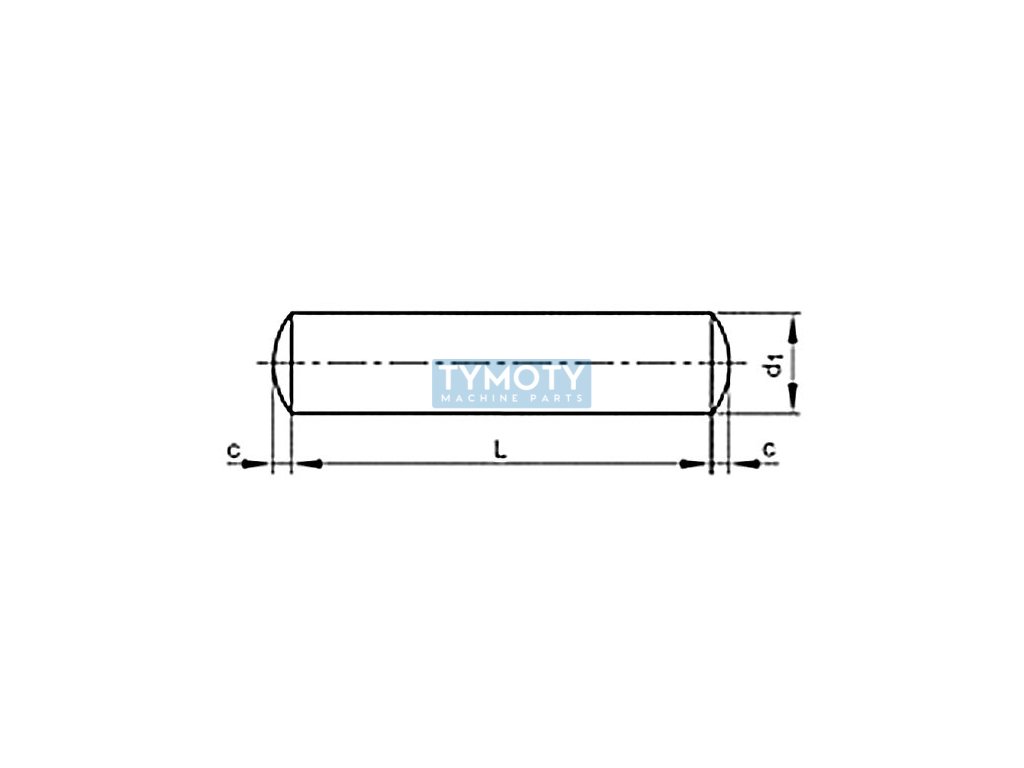

Cylindrical pin DIN 7A m6 6x14 stainless steel A1

Product detailed description

The cylindrical pin according to DIN 7A and ČSN 022150 is a precision ground component designed to create non-removable and dimensionally accurate connections. This particular model has dimensions of 6 mm in diameter and 14 mm in length, and is made of A1 grade stainless steel, which guarantees its resistance to corrosion and suitability for use in environments with higher humidity or chemical aggressiveness.

The pin is processed with a tolerance of m6, which means that its diameter is precisely controlled and allows installation in holes with a prescribed clearance, thus ensuring reliability and strength of the connection. This tolerance is ideal for applications where high accuracy and minimal clearance between the pin and the hole are required.

The use of cylindrical pins according to DIN 7A is common in mechanical engineering, where they are used for fixing and precise positioning of parts. Their main advantage is the ability to carry high shear loads without deformation, which is crucial in dynamically stressed joints. Thanks to the A1 stainless steel material, these pins are also suitable for applications in the food, chemical or pharmaceutical industries, where high corrosion resistance and material purity are required.

This component is compatible with the ISO 2338 standard, which allows its use in international projects and applications where global standards need to be followed.
