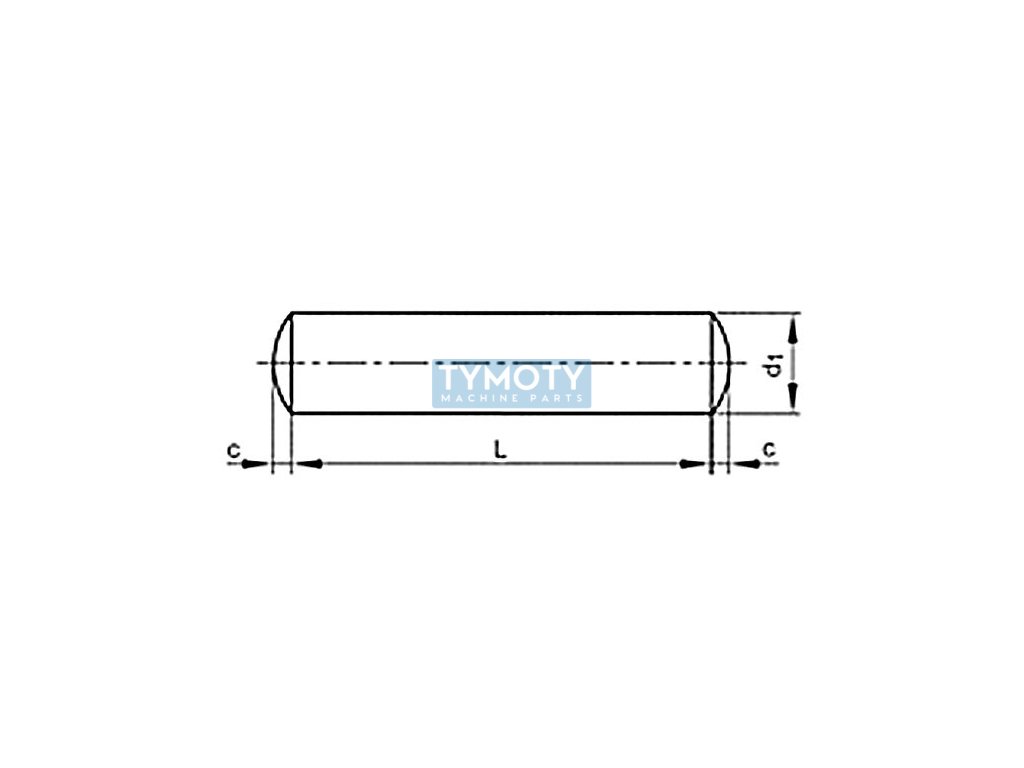

Cylindrical pin DIN 7A m6 6x14

Product detailed description

The cylindrical pin DIN 7A m6 6x14 is a precisely ground cylindrical element designed according to DIN 7A and ČSN 022150 standards. This component is intended for non-removable and dimensionally accurate connections, where it is used in holes with a prescribed clearance. The m6 tolerance ensures that the pin has precisely defined dimensions, which is key to its proper function in mechanical assemblies.

The cylindrical pin has a diameter of 6 mm and a length of 14 mm, and is made of steel, which guarantees its high strength and resistance to mechanical stress. The surface of the pin is smooth, without grooves, which minimizes friction during installation and ensures a firm fit in the hole. These properties are important for applications where high accuracy and reliability of connections are required.

Pins of this type are often used in mechanical engineering and in the manufacture of equipment, where it is necessary to ensure precise positioning of parts. They are suitable for applications where a permanent and fixed position of components is required without the possibility of their movement. Due to their design features, these pins are ideal for use in mechanical assemblies where high precision and reliability of connections are required. They are comparable to the ISO 2338 standard, which allows their wide use in international applications.
