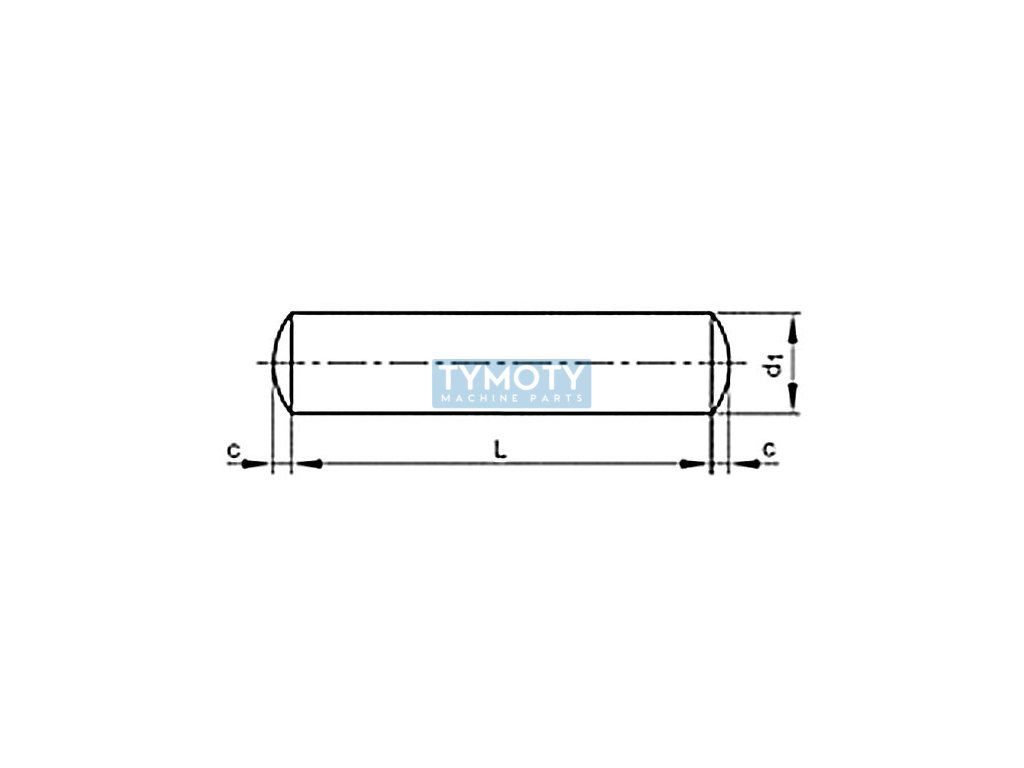

Cylindrical pin DIN 7A m6 3x6

Product detailed description

The cylindrical pin according to the DIN 7A standard with dimensions of 3x6 mm is a precisely ground cylindrical element designed to create non-removable and dimensionally accurate connections. This component is made of steel and meets the requirements of the ČSN 022150 standard, which guarantees its high quality and reliability in various technical applications.

The m6 tolerance ensures optimal clearance in connection with holes, which is key to achieving a precise and solid connection. The m6 tolerance field is defined as a medium-precision tolerance that allows assembly without excessive friction, while ensuring sufficient strength and stability of the connection.

Cylindrical pins according to the DIN 7A standard are commonly used in mechanical engineering and construction, where it is necessary to ensure precise positioning of components or parts. Thanks to their simple design and high accuracy, they are ideal for applications where repeatability and reliability of assembly are important.

The pins are suitable for use in holes with a prescribed clearance, which means they are ideal for applications where a tight connection is required without the possibility of easy disconnection. These pins are often used in mechanical assemblies where precise alignment and fixation of components is required.
