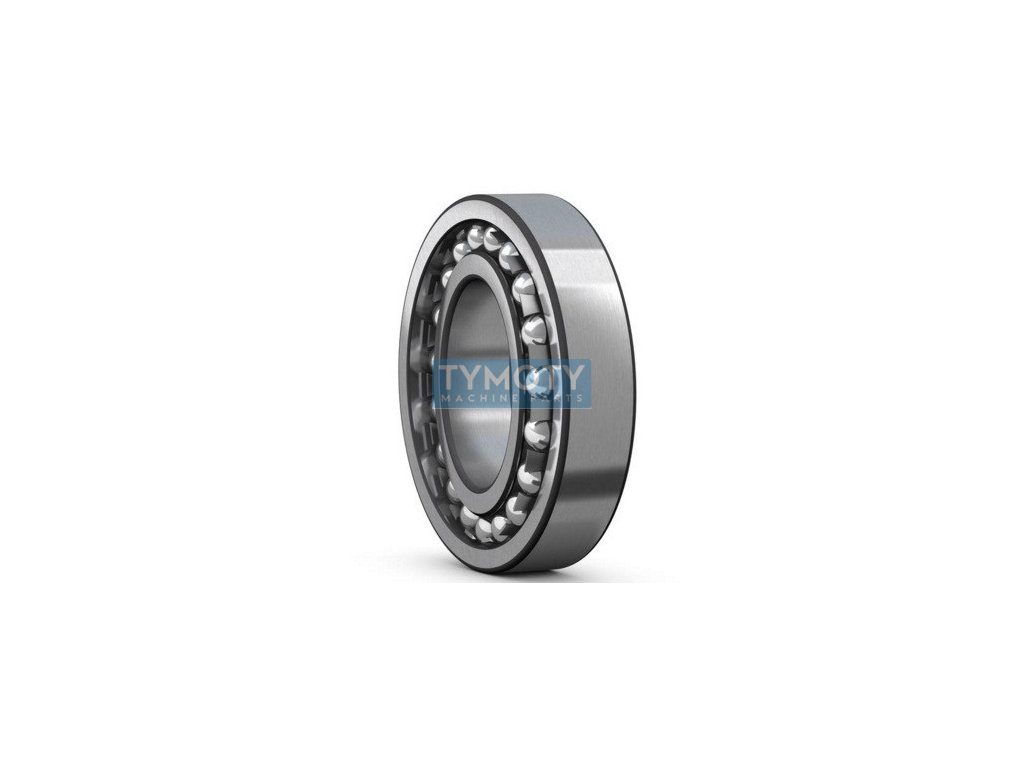

CX 1314 K tilting ball bearing
Code: 322791
Product detailed description
CX 1314 K - non-separable double-row self-aligning ball bearing with a tapered bore, a pressed steel cage guided by two rows of balls and with normal radial clearance.The outer ring has a common spherical raceway for both rows of balls, shaft deflection relative to the housing.
The bearing is mounted on a cylindrical shaft using an H 314 adapter sleeve.
Additional parameters
| Category: | Bearings > tilting ball > 13..K taper hole > 1314K |
|---|---|
| Weight: | 3 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 70, 150 |
| Hole profile: | conical |
| Manufacturer's brand: | CX |
| Material: | steel |
| Width B (mm): | 35 |
| Značení: | 1314 K |
| Typ: | naklápěcí kuličkové ložisko |
