Crown nut DIN 935 M8 |08| zinc

Product detailed description

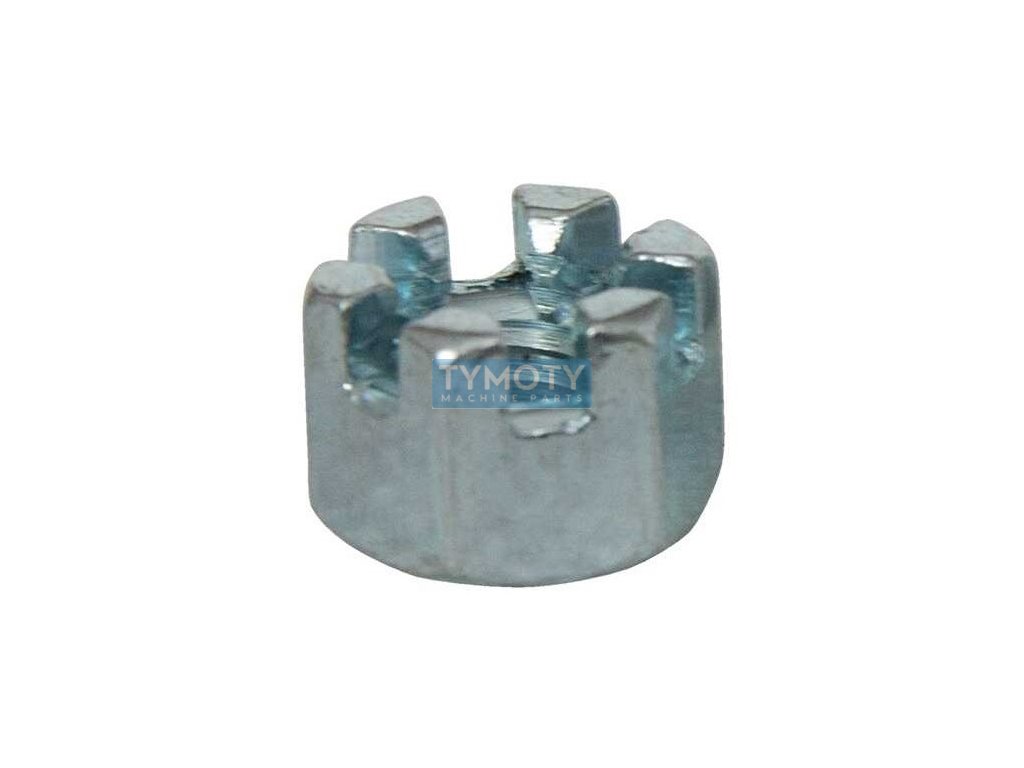

The DIN 935 M8 crown nut is a hexagonal nut designed for securing with a cotter pin in combination with a slotted pin or screw. This type of nut is designed for use in safety and mechanically demanding connections, where it is necessary to ensure a reliable and strong connection.

The nut is made of steel with a strength class of 8, which guarantees high resistance to mechanical stress. The surface treatment is zinc-plated, which provides protection against corrosion and increases the service life of the component in demanding conditions.

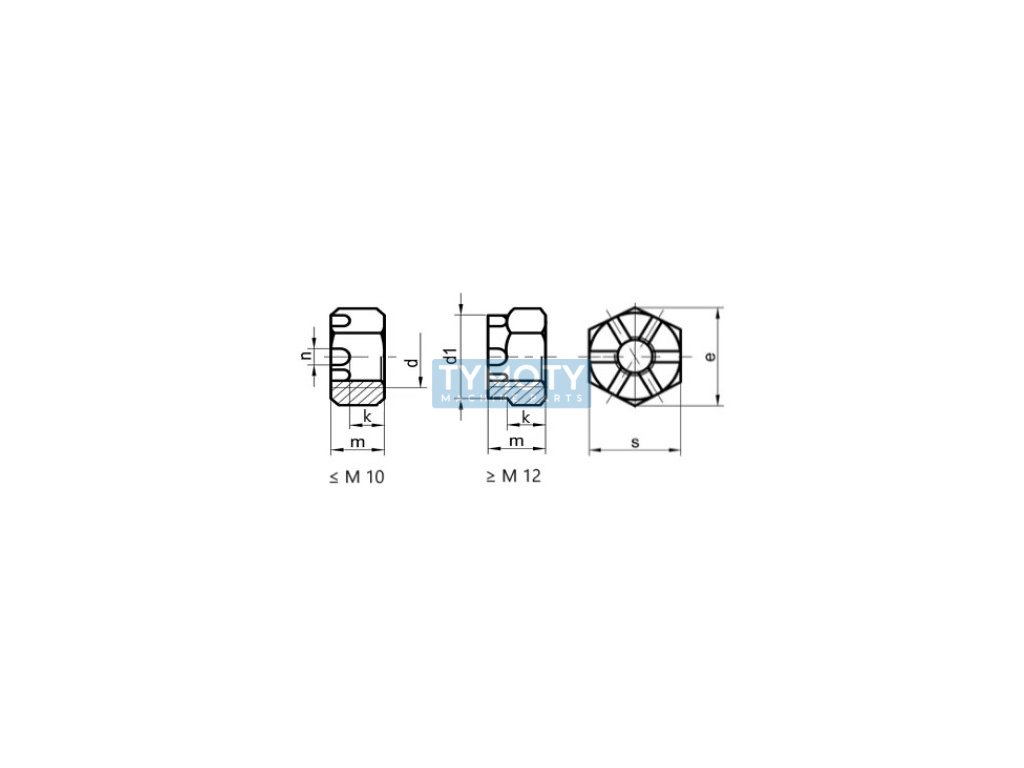

The nut has a metric M8 thread with a pitch of 1.25 mm, which is a standard size for this type of fastener. The dimensions of the nut are as follows: height m is 9.5 mm, width s is 13 mm and width e is 14.38 mm. The crown height k is 6.5 mm and the groove n has a size of 2.5 mm.

The standards according to which the nut is manufactured are DIN 935, ISO 7035 and ČSN 021411, which guarantees compatibility and compliance with international standards. This nut is ideal for applications where it is necessary to ensure a reliable mechanical connection with the possibility of disassembly and reuse.
