Crown nut DIN 935 M30x2.00 |08|

Product detailed description

The M30x2.00 castle nut according to DIN 935, ISO 7035 and ČSN 021411 is a hexagonal connecting element intended for applications requiring high mechanical resistance and safety. This nut is designed to be secured with a cotter pin in combination with a slotted pin or screw, thus ensuring a reliable connection in demanding conditions.

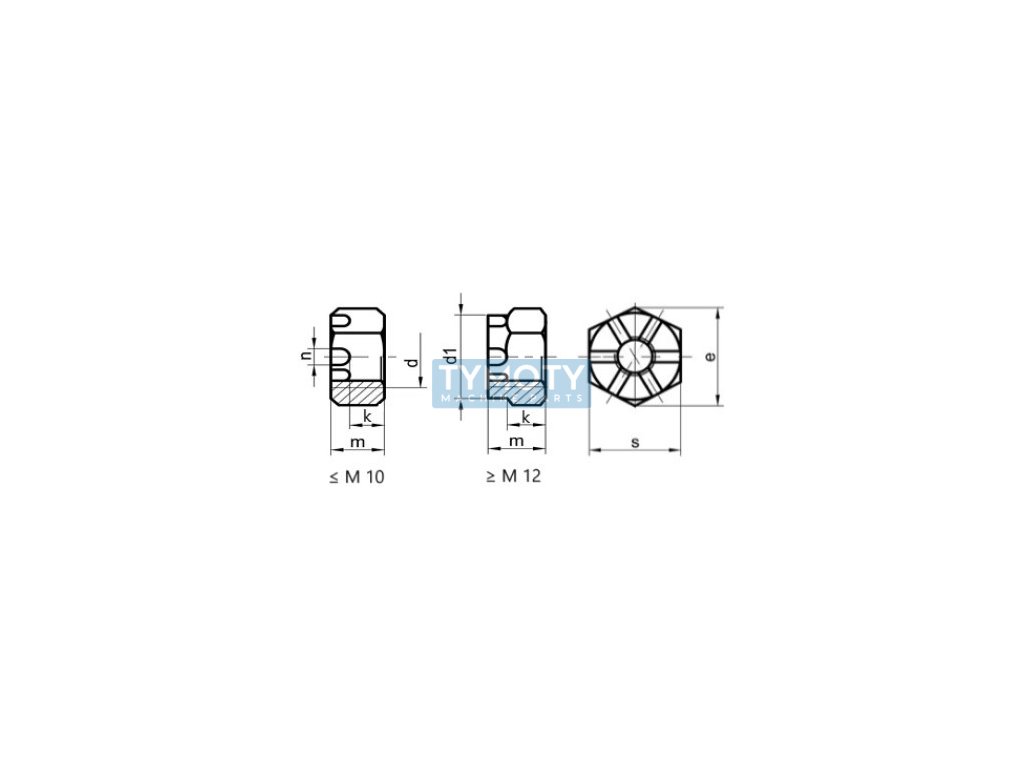

The nut has a fine metric thread with a diameter of M30 and a pitch of 2.00 mm, which allows for a precise and firm connection. The outer diameter of the nut (d1) is 42 mm, while the width between the surfaces (s) is 46 mm and the width between the diagonals (e) reaches 50.85 mm. The height of the nut (m) is 33 mm, while the height of the crown (k) is 24 mm. The slot for the cotter pin is 7 mm wide, which allows for secure locking.

The nut is made of steel with a strength class of 8, which guarantees high resistance to mechanical stress. The surface treatment is not applied, which means that the nut is supplied in a raw state without protective layers. This feature is important in applications where additional surface treatments are required to adapt to specific environmental or application requirements.

Castellated nuts are ideal for use in structures where additional security against loosening of connections is required, for example in the automotive industry, mechanical engineering or construction applications. Their design allows for easy assembly and disassembly, while ensuring high reliability of the connection.
