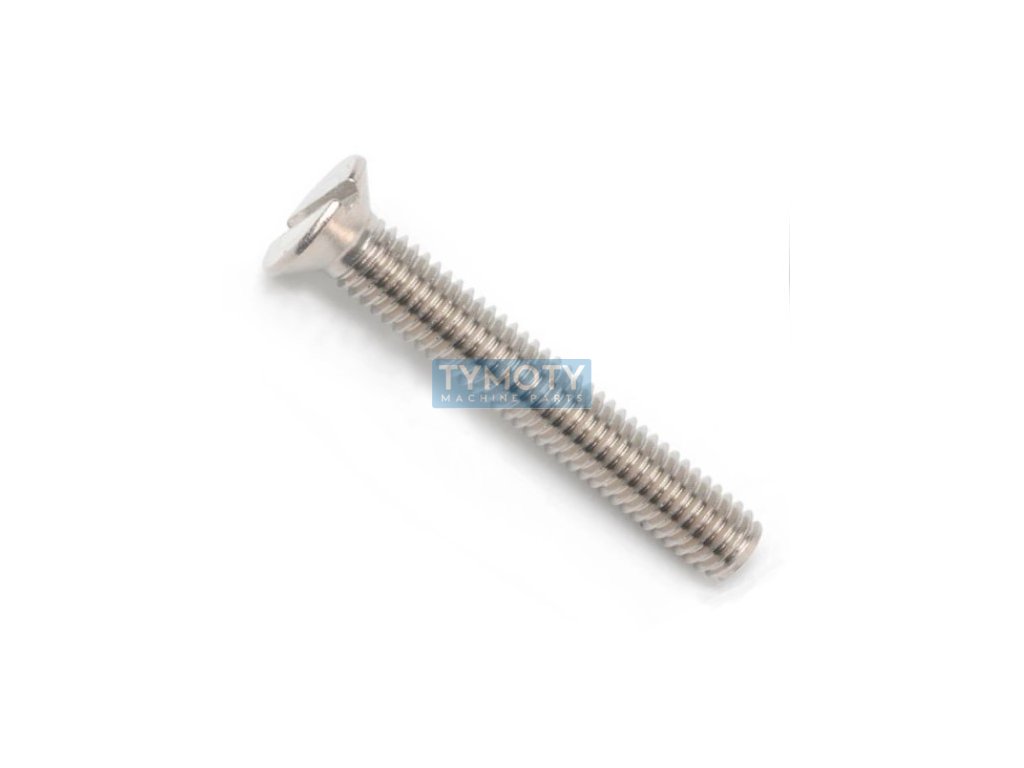

Countersunk screw with slot DIN 963 M1.6x8 stainless steel A2

Product detailed description

The countersunk screw with a slot according to DIN 963, ISO 2009 and ČSN 021151 is made of stainless steel grade A2, which ensures its high resistance to corrosion and suitability for use in environments with higher humidity or chemical exposure. This screw has a metric thread with a nominal diameter of M1.6 and a length of 8 mm, with a thread pitch of 0.35 mm.

The screw head is countersunk, which means that after installation it is flush with the surface of the material into which the screw is fastened. This design is ideal for applications where a smooth surface without protruding elements is required. The through groove on the head allows the use of a standard flat screwdriver for assembly and disassembly.

The head diameter (dk) is 3 mm, the head height (k) is 0.96 mm and the groove width (s) is 0.4 mm, which are critical dimensions for proper insertion and functionality of the screw. The screw has no surface treatment, which is common for stainless materials that naturally resist corrosion without the need for additional protective layers.

This screw is suitable for use in mechanical engineering, electrical engineering and other industries where a reliable and aesthetically unobtrusive connection of components is required.
