Countersunk screw with groove DIN 963 M6x70 galvanized

Product detailed description

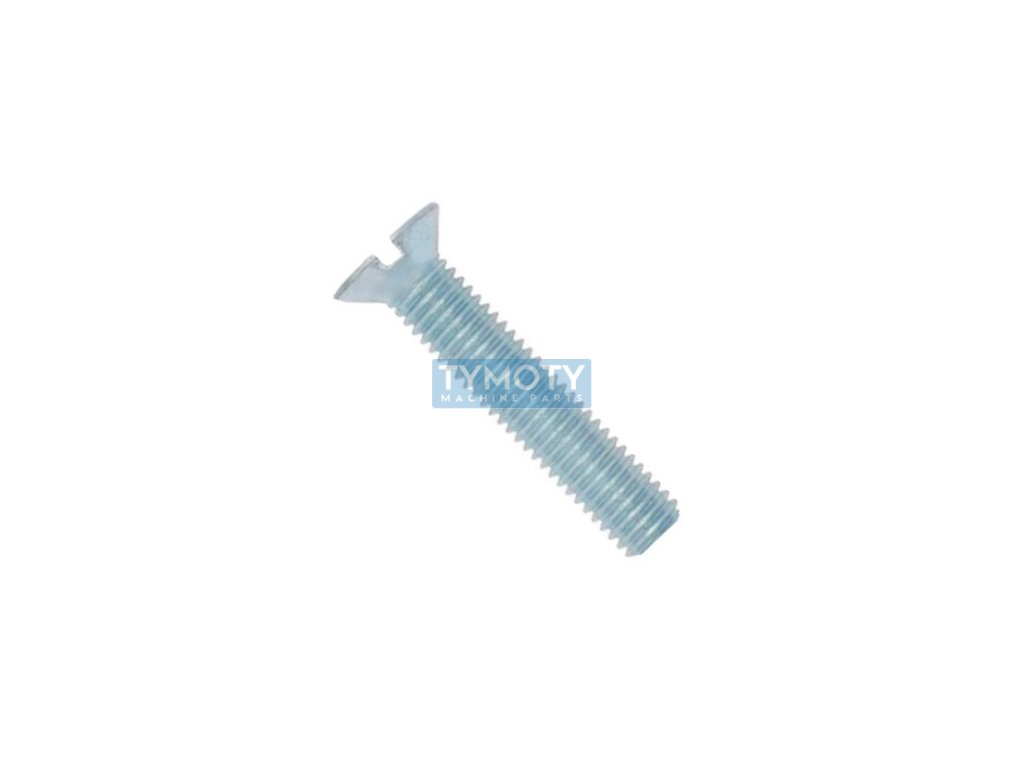

The countersunk screw with a slot according to DIN 963, ISO 2009 and ČSN 021151, with dimensions M6 x 70 mm, is made of steel of strength class 4.8. This component is designed with a metric thread with a pitch of 1.00 mm, which runs the entire length of the screw up to the countersunk head. The head of the screw has a countersunk shape, which allows it to be embedded in the material so that it is flush with the surface, thus achieving an aesthetic and functional joint.

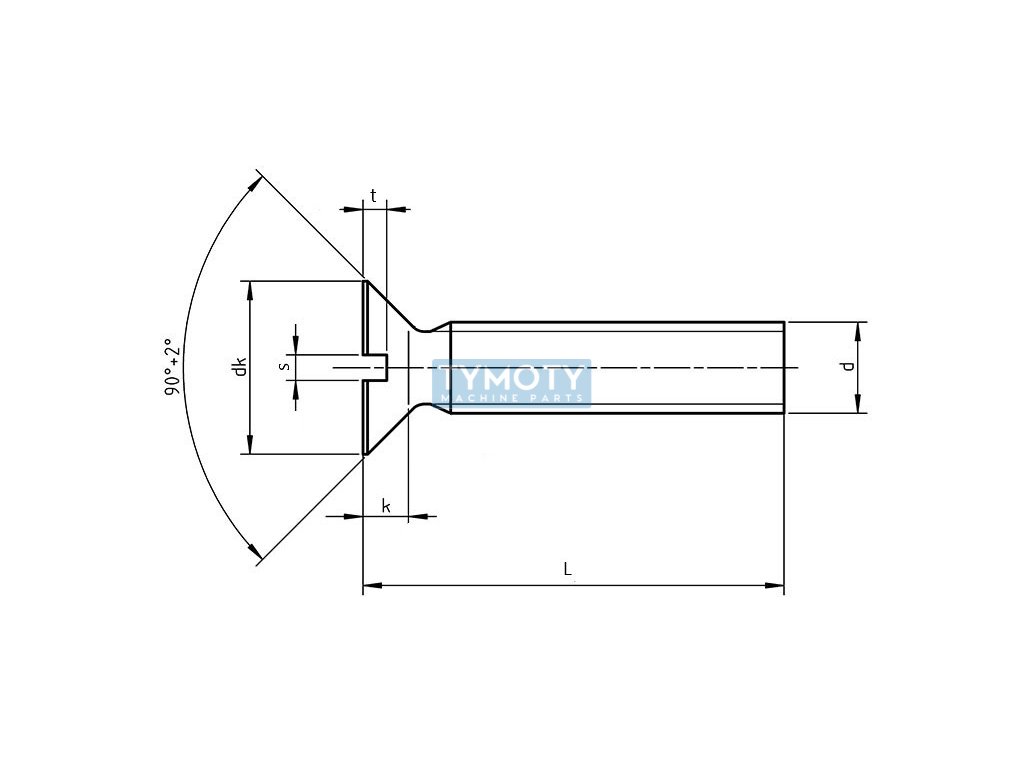

The screw is equipped with a continuous slot, which allows the use of a standard flat screwdriver for assembly and disassembly. The head diameter (dk) is 11 mm, the head height (k) is 3 mm and the slot width (s) is 1.6 mm. These dimensions are optimized for reliable attachment and force transfer in the application.

The surface treatment of the screw is zinc-plated, which provides protection against corrosion and increases the service life of the component in various environments. The screw is suitable for use in metal and plastic parts, where aesthetic appearance and precise fitting of joints are required. Thanks to its properties, it is ideal for applications where strength and resistance to external influences are important.
