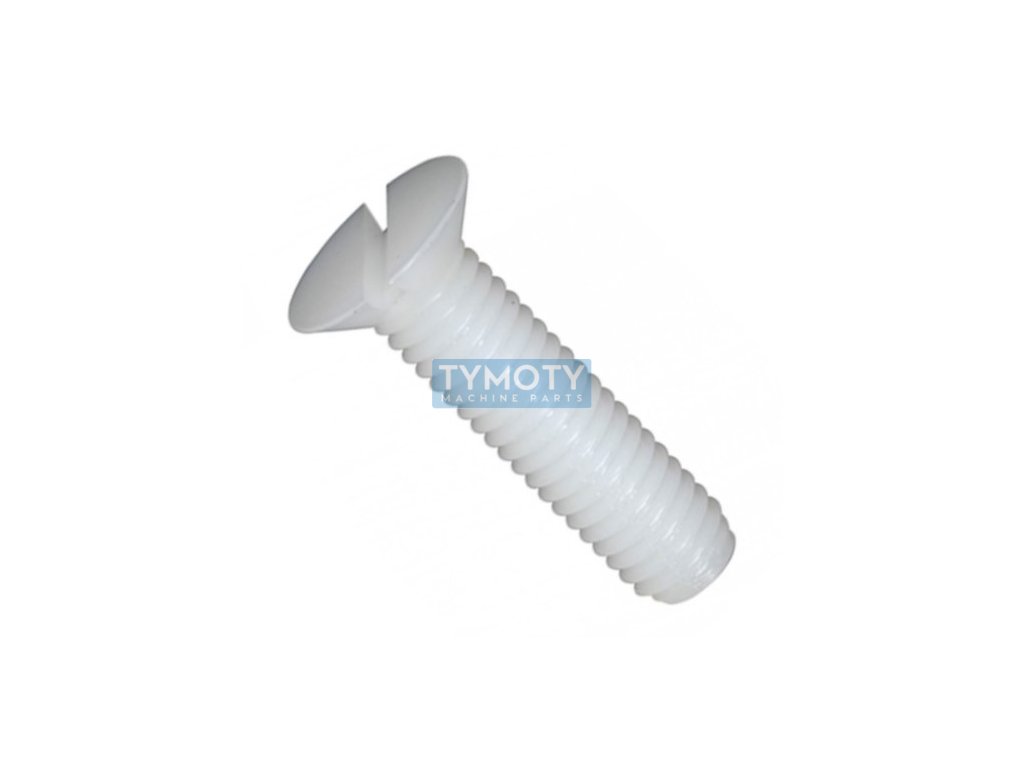

Countersunk screw with groove DIN 963 M3x10 plastic

Product detailed description

The countersunk head screw with continuous groove according to DIN 963 and ISO 2009 is designed for applications requiring low weight and corrosion resistance. This screw has a metric thread with a diameter of M3 and a length of 10 mm, with a thread pitch of 0.50 mm. The head of the screw is countersunk, which allows it to be flush with the surface of the material into which it is installed, reducing the risk of snagging or damage. The screw material is polyamide (PA), a type of plastic known for its strength and resistance to chemicals. This material is ideal for use in environments where electrical insulation is required or where metal screws could cause galvanic corrosion. The screw has no surface treatment, which is common for plastic components, as their natural corrosion resistance is sufficient.

The head dimensions are as follows: head diameter (dk) is 5.6 mm, head height (k) is 1.65 mm and groove width (s) is 0.8 mm. The continuous groove allows for easy assembly and disassembly using a standard flat screwdriver. The screw is suitable for use in lightweight construction, electronic equipment and applications where low weight and corrosion resistance are required.
