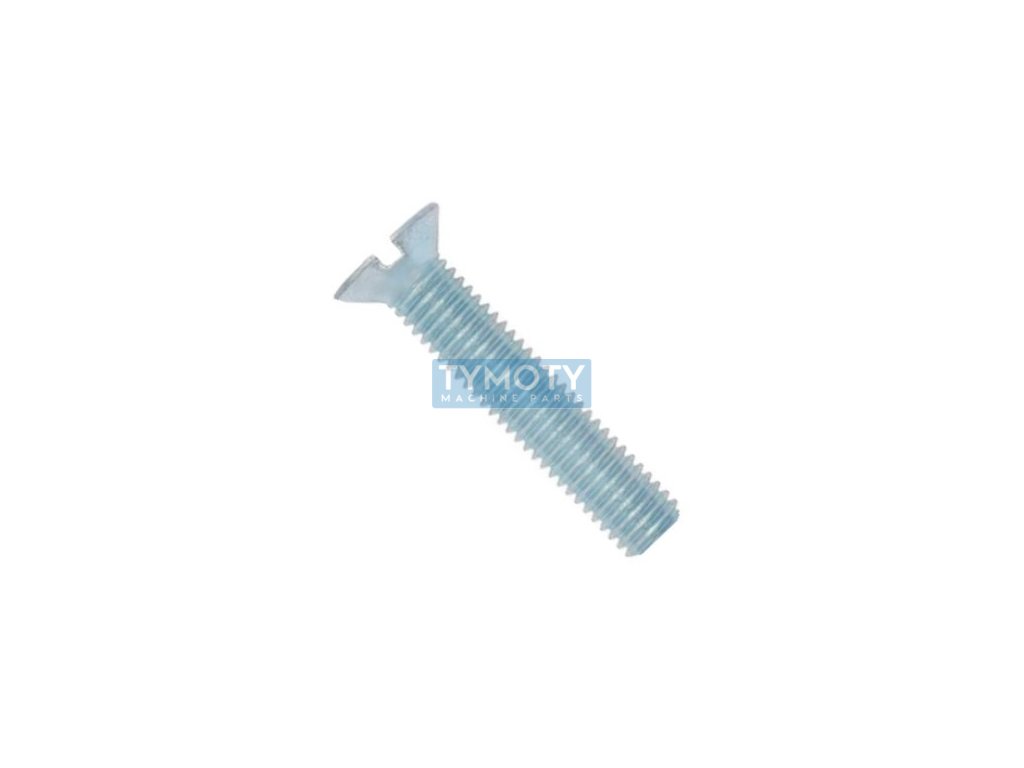

Countersunk screw with groove DIN 963 M2x12 galvanized

Product detailed description

The countersunk head screw with a continuous groove according to DIN 963 and ISO 2009 is designed for applications requiring aesthetic and precise fit. This screw has a metric thread with a diameter of M2 and a length of 12 mm, with the thread extending all the way to the head, which allows it to be firmly fixed in materials such as metals and plastics.

The screw head is countersunk, which means that after installation it is flush with the surface of the material, achieving a smooth and aesthetic appearance. The continuous groove on the head is designed for flat-blade screwdrivers, which allows easy assembly and disassembly.

The screw is made of steel of strength class 4.8, which guarantees sufficient strength for common applications. The surface treatment is white zinc plating, which provides protection against corrosion and increases resistance to external influences.

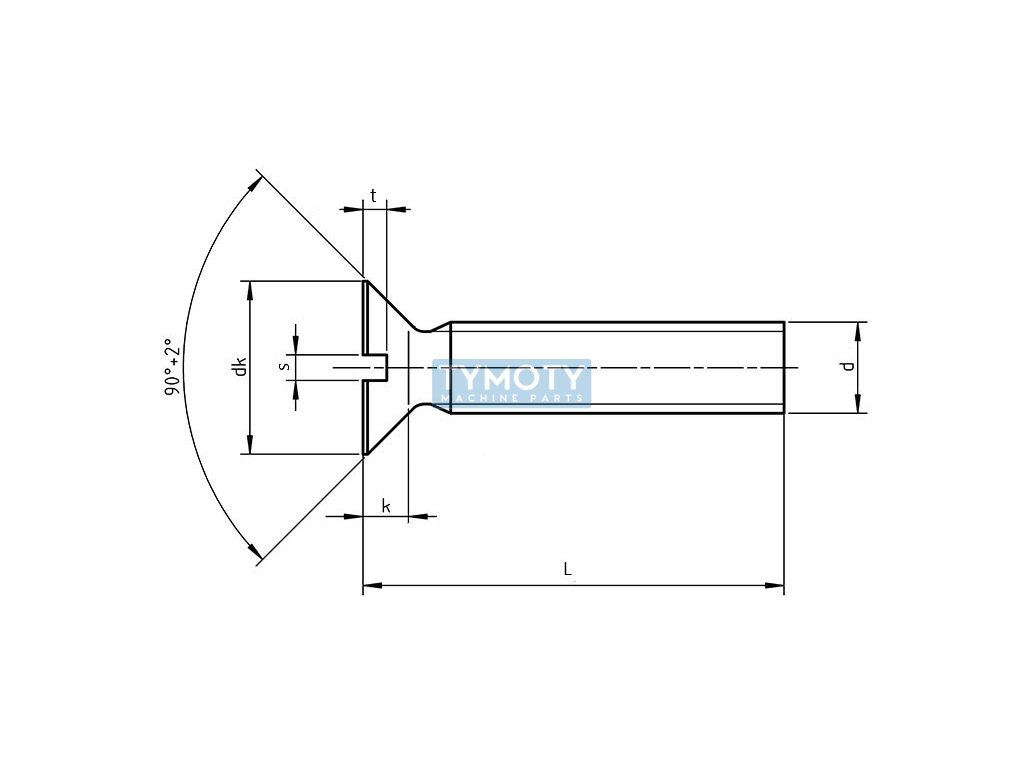

The head dimensions are as follows: head diameter (dk) is 3.8 mm, head height (k) is 1.2 mm and groove width (s) is 0.5 mm. The screw has a metric thread with a pitch of 0.40 mm, which is standard for this diameter. This screw is ideal for use in applications where a solid connection with minimal visual interference is required.
