Countersunk screw with groove DIN 963 M2.5x16 stainless steel A2

Product detailed description

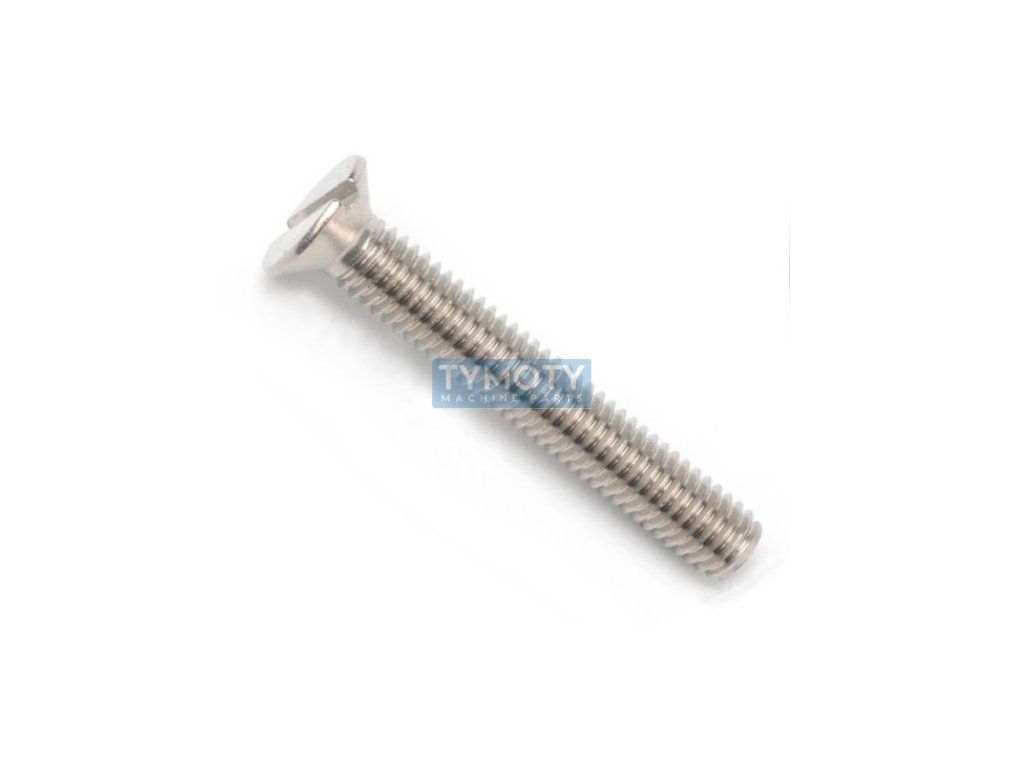

The DIN 963 M2.5x16 slotted countersunk screw made of A2 stainless steel is a high-precision fastener designed for applications requiring reliable and aesthetic fastening. This component is manufactured according to the DIN 963 standard, which is equivalent to ISO 2009 and ČSN 021151, which guarantees its compatibility and standardization on an international scale.

The screw has a metric thread with a diameter of M2.5 and a length of 16 mm, with a thread pitch of 0.45 mm. This type of thread is suitable for precise and solid connections, often used in mechanical engineering and precision mechanics. The countersunk head of the screw has a diameter of 4.7 mm and a height of 1.5 mm, which allows it to be completely embedded in the material, thus achieving a smooth surface without protruding parts.

The groove on the head is continuous, which allows for easy and effective use of common screwdrivers. The groove width is 0.6 mm, which is optimized for precise fit and minimizing the risk of damage during assembly. The material is A2 grade stainless steel, which provides high corrosion resistance, which is ideal for use in environments with higher humidity or chemical exposure. The surface treatment is not applied, which preserves the natural properties of stainless steel.

This screw is suitable for applications where high connection strength and aesthetic appearance are required, such as electronic devices, delicate mechanisms or stainless steel structures. Its use is wide and includes various industries where precision and reliability of fasteners are important.
