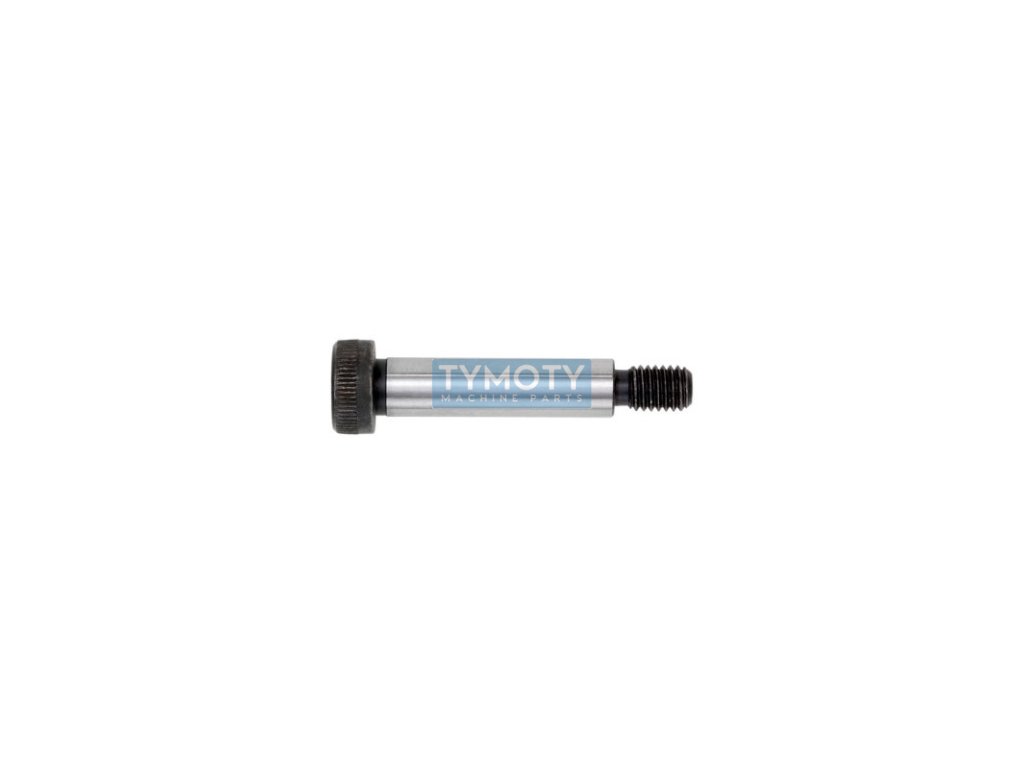

Countersunk allen screw ISO 7379 M5 f9 6x35-12.9
Code: 822909
Product detailed description
The flush-fitting screw with a cylindrical head and internal hexagon according to ISO 7379 is designed for applications requiring a precise fit and high strength. This screw has a metric M5 thread with a diameter of 5 mm and an overall length of 35 mm. The seat has a diameter of 6 mm, which ensures a precise fit in the hole with a tolerance of f9. The thread length is 9.5 mm, which provides sufficient thread length for a reliable fit.The cylindrical head of the screw has a diameter of 10.22 mm and a height of 4.5 mm, while the internal hexagon with a dimension of 3 mm allows the use of an Allen key for assembly and disassembly. The screw is made of steel with a strength class of 12.9, which means that it has a high tensile strength and is suitable for demanding mechanical applications. The surface of the screw is untreated, which is suitable for applications where additional corrosion protection is not required.
This screw is ideal for use in mechanical engineering and industrial applications where precision and joint strength are important. Due to its design and material properties, it is suitable for dynamically stressed joints where high resistance to mechanical loads is required.
Additional parameters
| Category: | Fasteners > cap screws > Allen key, flush ISO 7379 > steel 12.9 without treatment, tolerance f9 |
|---|---|
| Weight: | 0.006 kg |
| Diameter D (mm): | M5 |
| Diameter d1 (mm): | 6 |
| Diameter dk (mm): | 10,22 |
| Fortress class: | 12,9 |
| Groove type: | internal hexagon |
| Head shape: | cylindrical |
| Height k (mm): | 4,5 |
| ISO standard: | 7379 |
| Length L (mm): | 35 |
| Material: | steel |
| Pitch: | 1 |
| Surface finish: | without modification |
| Thread length b (mm): | 9,5 |
| Thread type: | metric |
| Width s (mm): | 3 |
